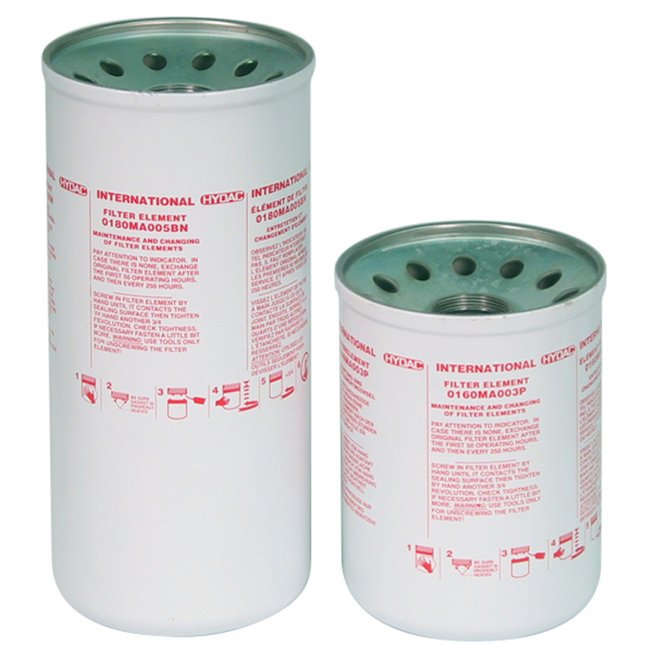

HYDAC Hydraulic Filter Element MA 0160 BN4HC Spin-On
HYDAC Hydraulic Filter Element MA 0160 BN4HC Spin-On
SKU:HYD-e1f153
HYDAC Filter Element MA - Hydraulic Spin-On Filter, 5µm Rating, BN/HC Media, Stat-Free, High Efficiency
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
HYDAC Hydraulic Filter Element MA 0160 BN4HC Spin-On
$45.99
Quantity: 1
Claim Your Seller Account
HYDAC Hydraulic Filter Element MA 0160 BN4HC Spin-On
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC Filter Element Type MA is designed for hydraulic systems, featuring a 5 µm filter rating with a Spin-On Can configuration. With a Beta Rating of β5 > 200 and an efficiency of 99.5%, this element ensures exceptional filtration performance. Its unique design with BN/HC Betamicron® Low Collapse media and Nitrile Rubber seal minimizes electrostatic charge generation. Operating between -30°C to 100°C, it offers reliable filtration in a wide range of temperatures. Constructed with Microglass filter material and a steel support tube, this element guarantees durability and optimal performance.
Product Specifications
Dimensions Height
6.5 in | 166 mm
Dimensions Outside Diameter
5 in | 126 mm
Specifications Absolute Filter Rating
5 µm

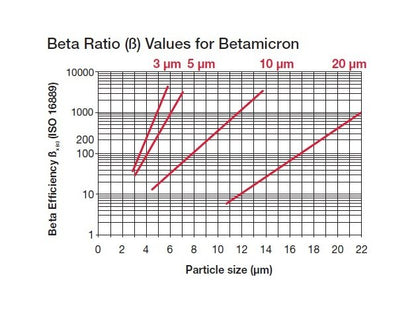

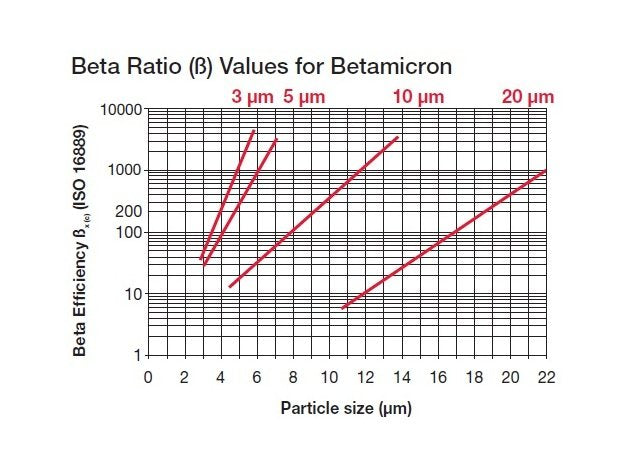

Specifications Beta Rating
β5 > 200
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Efficiency
99.5 %
Specifications Filter Material
Microglass
Specifications Filter Rating
5 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Model Code Description
0160 MA 005 BN4HC /-SFREE
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0160
Specifications Stat Free
Yes
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
Supplementary Details 0
Element specially designed to minimize electrostatic charge generation.
