HYDAC Hydraulic Filter Element MA for Spin-On Filters
HYDAC Hydraulic Filter Element MA for Spin-On Filters
SKU:HYD-9b1a02
Enhance your hydraulic filtration system with HYDAC Filter Element Type MA for Spin-On Filters. 40 µm rating, Aquamicron media, and durable steel support tube.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
HYDAC Hydraulic Filter Element MA for Spin-On Filters
$45.99
Quantity: 1
Claim Your Seller Account
HYDAC Hydraulic Filter Element MA for Spin-On Filters
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

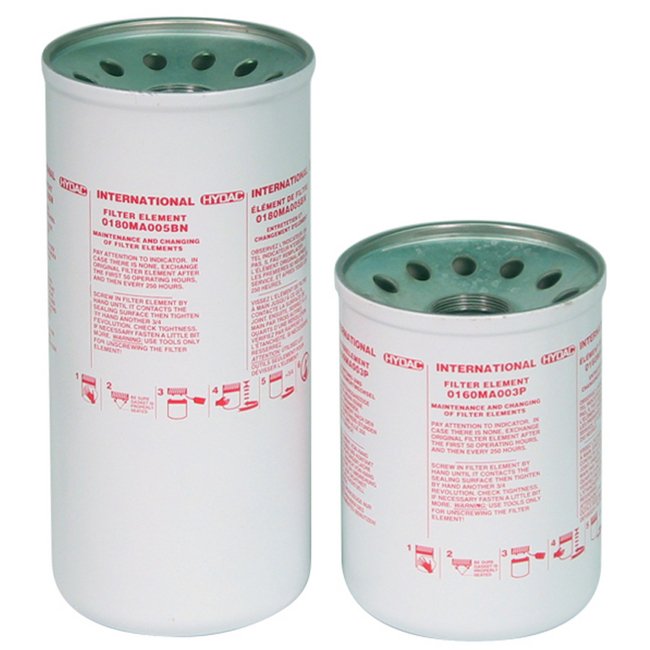

The HYDAC Filter Element Type MA is specifically designed for hydraulic filtration systems, featuring a 40 µm filter rating and Aquamicron media type for efficient particle removal. This spin-on can configuration with Nitrile Rubber seal ensures a secure fit, while the steel support tube enhances durability. Operating between 0-100°C, this element provides reliable filtration in various environments. With an outside-in flow direction and collapse rating of 6 bar, it meets the stringent requirements of hydraulic and lube filters. The product dimensions include a 5-inch outer diameter and 6.5-inch height.
Product Specifications
Dimensions Height
6.5 in | 166 mm
Dimensions Outside Diameter
5 in | 126 mm
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Material
Other Synthetic
Specifications Filter Rating
40 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
AM=Aquamicron
Specifications Model Code Description
0160MA040AM
Specifications Nominal Filter Rating
40 µm
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
0 ºC | 32 ºF
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-SPIN-ONS
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0160
Specifications Stat Free
No
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
