HYDAC Hydraulic Filter Element RN 0160 - 3µm, DIN Spec. 24550
HYDAC Hydraulic Filter Element RN 0160 - 3µm, DIN Spec. 24550
SKU:HYD-a142b5
HYDAC Hydraulic Filter Element RN 0160 - 3µm, DIN Spec. 24550 - Precision filtration for hydraulic systems
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
HYDAC Hydraulic Filter Element RN 0160 - 3µm, DIN Spec. 24550
$89.99
Quantity: 1
Claim Your Seller Account
HYDAC Hydraulic Filter Element RN 0160 - 3µm, DIN Spec. 24550
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

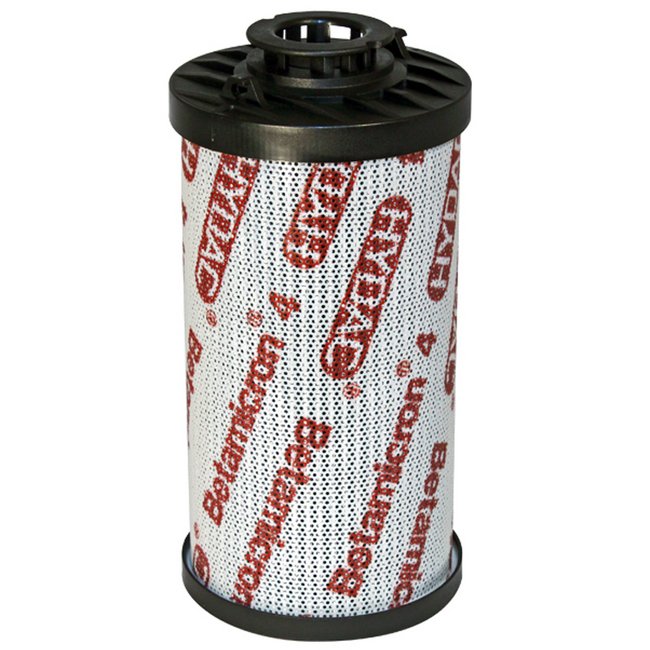

The HYDAC Filter Element Type RN is designed for precision hydraulic filtration, featuring a 3µm filter rating and a sturdy cartridge style with fluoroelastomer seals. With a Beta Rating of ≥ 1000 and an efficiency of 99.9%, this filter ensures optimal performance and protects your hydraulic system components. Certified for DIN Spec. 24550 filters, this element is an industry-standard solution for efficient and reliable filtration in hydraulic and lube systems.
Product Specifications
Dimensions Inside Diameter
52.2 mm | 2.1 in
Dimensions Length
6.3 in | 160 mm
Dimensions Outside Diameter
4.3 in | 110 mm
Specifications Absolute Filter Rating
3 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3 bar | 43.5 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
Bypass Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
Closed End Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Material
Microglass
Specifications Filter Rating
3 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.198 psi/gpm
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0160 RN 003 BN4HC /-V
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-DN/HF
Specifications Seal
Fluoroelastomer (FPM)
Specifications Size
0160
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
