HYDAC Hydraulic Filter Element RN10 for DIN 24550 Filters
HYDAC Hydraulic Filter Element RN10 for DIN 24550 Filters
SKU:HYD-81ebcb
High-performance HYDAC Hydraulic Filter Element for DIN 24550 Filters - 10 µm rating, 99.9% efficiency, BN/HC Betamicron® Low Collapse media, and steel support tube.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC Hydraulic Filter Element RN10 for DIN 24550 Filters
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC Hydraulic Filter Element RN10 for DIN 24550 Filters
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

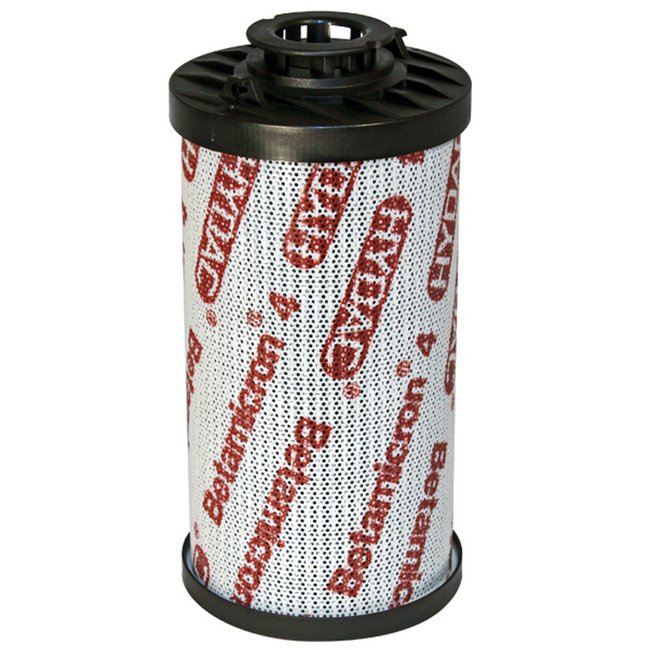

The HYDAC Type RN Hydraulic Filter Element is designed for precision filtration in hydraulic systems, offering a filter rating of 10 µm and an efficiency of 99.9%. Made with high-quality microglass filter material and a steel support tube, it ensures reliable filtration performance. This cartridge-style filter element features a Beta Rating of ≥ 1000, BN/HC Betamicron® Low Collapse media type, and operates in temperatures ranging from -30°C to 100°C. With a collapse rating of 20 bar, O-ring plastic caps, and outside-in flow direction, this element is a dependable choice for maintaining optimal cleanliness in hydraulic systems.
Product Specifications
Dimensions Inside Diameter
32 mm | 1.26 in
Dimensions Length
9.8 in | 250 mm
Dimensions Outside Diameter
2.4 in | 60 mm
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
O-Ring Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
Double Open End
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Material
Microglass
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0100 RN 010 BN4HC
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-DN/HF
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0100
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
