HYDAC Hydraulic Filter Elements RN for DIN 24550 Filters
HYDAC Hydraulic Filter Elements RN for DIN 24550 Filters
SKU:HYD-0c16ff
High-quality HYDAC Filter Elements for hydraulic systems, 10 µm Filter Rating, DIN 24550 compliant
Regular price
$52.99
Regular price
Sale price
$52.99
Unit price
per
Initiate Order
HYDAC Hydraulic Filter Elements RN for DIN 24550 Filters
$52.99
Quantity: 1
Claim Your Seller Account
HYDAC Hydraulic Filter Elements RN for DIN 24550 Filters
$52.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

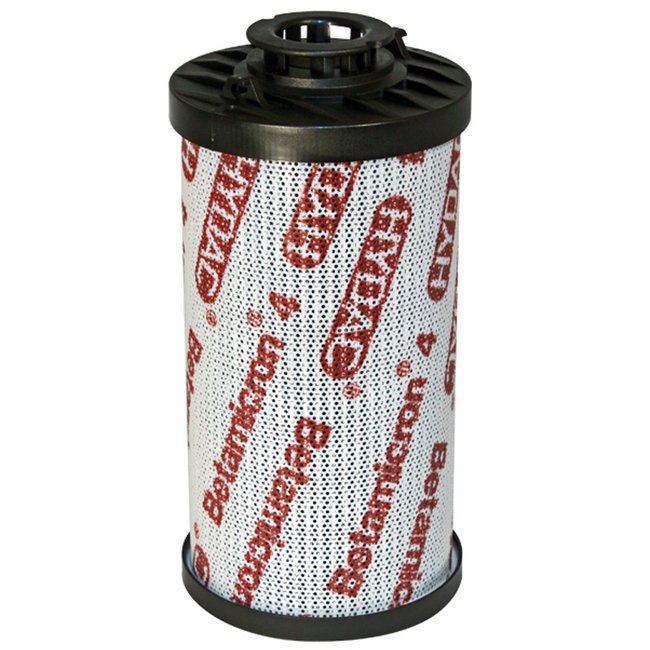

The HYDAC Filter Elements Type RN are specifically designed for hydraulic systems requiring superior filtration. With a Filter Rating of 10 µm and an Efficiency of 99.9%, these cartridge-style elements ensure optimal performance and longevity. The microglass Filter Material, Fluoroelastomer Seals, and Steel Support Tube guarantee robust construction. Compliant with DIN Spec. 24550 standards, these elements offer reliable filtration in industrial applications.
Product Specifications
Dimensions Inside Diameter
52.2 mm | 2.1 in
Dimensions Length
6.3 in | 160 mm
Dimensions Outside Diameter
4.3 in | 110 mm
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3 bar | 43.5 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
Bypass Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
Closed End Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Material
Microglass
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.066 psi/gpm
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0160 RN 010 BN4HC /-V
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-DN/HF
Specifications Seal
Fluoroelastomer (FPM)
Specifications Size
0160
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
