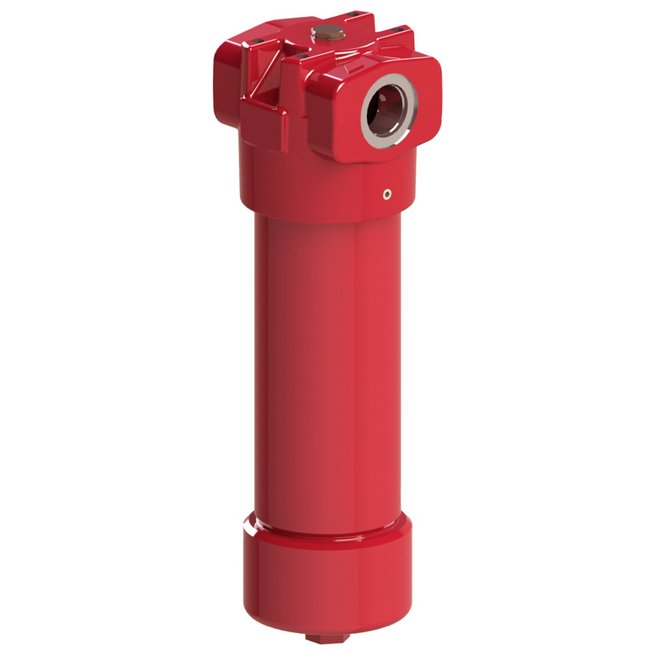

HYDAC Inline Automotive Filter (HF3P Series 6090 PSI)
HYDAC Inline Automotive Filter (HF3P Series 6090 PSI)
SKU:HYD-ed6a85
Enhance automotive performance with the HYDAC Inline Filter, featuring 3 µm filtration and 6090 psi max pressure. Durable, reliable, and efficient.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
HYDAC Inline Automotive Filter (HF3P Series 6090 PSI)
$749.99
Quantity: 1
Claim Your Seller Account
HYDAC Inline Automotive Filter (HF3P Series 6090 PSI)
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC Inline Automotive Filter from the HF3P Series offers superior filtration with its 3 µm rating, ensuring optimal performance in high-pressure environments up to 6090 psi. This filter features innovative design elements like the non-welded housing, O-ring seals for reliable sealing, and a poppet-type bypass valve for enhanced system reliability. With a Ductile iron head and Betamicron® element material, this filter guarantees durability and efficient oil filtration, making it a top choice for industrial and automotive applications.
Product Specifications
Dimensions End Size
1-1/2 in
Dimensions Height
18.98 in | 482 mm
Dimensions Width
6.30 in | 160 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of BSPP, SAE straight thread O-ring boss, and SAE Flange porting (sizes 4"-16") to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile Rubber, fluorocarbon elastomer, and ethylene propylene Rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bypass Valve
Non-Bypass
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Element Collapse Pressure Rating
210 bar | 3045 psi
Specifications Element Material
Betamicron®
Specifications End Type
SAE Straight Thread O-Ring Boss SAE 24 in. or SAE 16 in.
Specifications Filter Rating
3 µm
Specifications Flow
91 gpm | 344 L/min
Specifications Head Material
Ductile iron
Specifications Model Code Description
HF3P-BH-13TF3C1.0/12EPR
Specifications Mounting Type
Inline 4 Mounting Holes
Specifications Operating Pressure Max
420 bar | 6090 psi
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seal Material
Ethylene Propylene Rubber (EPR)
Specifications Type
High Pressure Filter
Specifications Weight
32.88 kg | 72.5 lb
