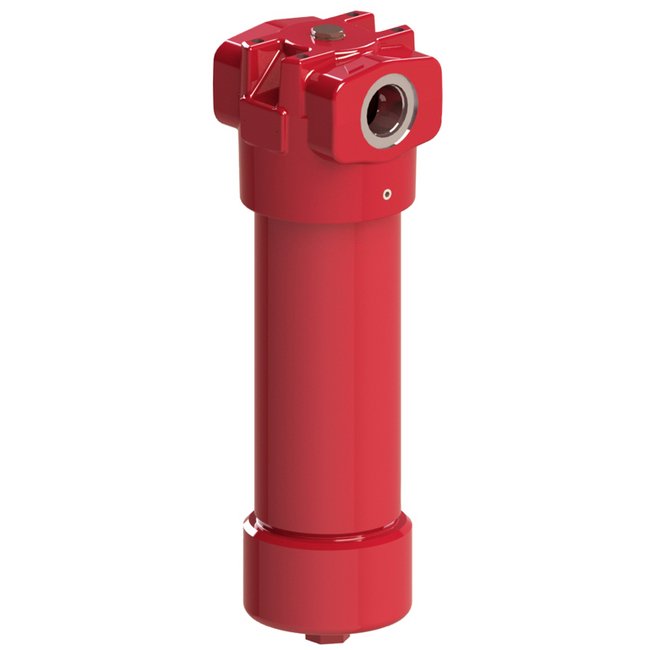

HYDAC Inline Industrial Filter HF3P Series 6090 PSI
HYDAC Inline Industrial Filter HF3P Series 6090 PSI
SKU:HYD-a4b8aa
Upgrade to the HYDAC HF3P Series 6090 PSI Filter for superior high-pressure filtration in automotive applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
HYDAC Inline Industrial Filter HF3P Series 6090 PSI
$799.99
Quantity: 1
Claim Your Seller Account
HYDAC Inline Industrial Filter HF3P Series 6090 PSI
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC Inline Industrial Filter HF3P Series 6090 PSI is a High Pressure Filter designed for maximum performance and reliability in automotive and industrial applications. With a flow rate of 55 gpm and an operating pressure of 6090 psi, this filter ensures efficient filtration with its 10 µm Filter Rating. The non-welded housing design reduces stress concentrations, while the choice of seal materials guarantees compatibility with various fluids. Easy installation and maintenance make this filter a top choice for high-pressure hydraulic and lube systems.
Product Specifications
Dimensions End Size
2 in
Dimensions Height
13.74 in | 349 mm
Dimensions Width
6.30 in | 160 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of BSPP, SAE straight thread O-ring boss, and SAE Flange porting (sizes 4"-16") to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile Rubber, fluorocarbon elastomer, and ethylene propylene Rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bypass Valve
Non-Bypass
Specifications Element Collapse Pressure Rating
210 bar | 3045 psi
Specifications Element Material
Betamicron®
Specifications End Type
SAE Flange Ports - SAE 2 in., Code 62 (6000 psi) or 1 1/2 in. Code 61
Specifications Filter Rating
10 µm
Specifications Flow
55 gpm | 208 L/min
Specifications Head Material
Ductile iron
Specifications Model Code Description
HF3P-BH-08TL10BM1.0/16
Specifications Mounting Type
Inline 4 Mounting Holes
Specifications Operating Pressure Max
420 bar | 6090 psi
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Type
High Pressure Filter
Specifications Weight
25.44 kg | 56.1 lb
