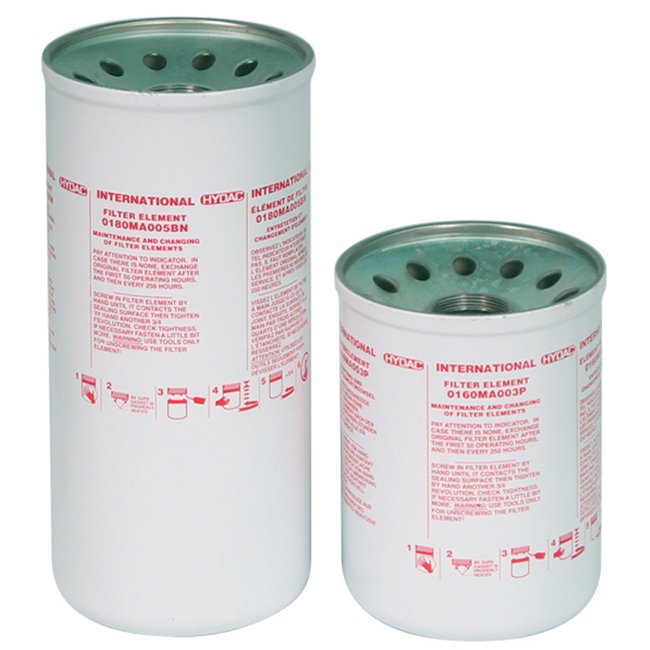

HYDAC MA Hydraulic Filter Element for Spin-On Filters

Name: HYDAC MA Hydraulic Filter Element for Spin-On Filters
Brand: HYDAC Technology Corporation
SKU: HYD-9a0e9c
Price: 39.99 USD
Availability: OutOfStock

SKU:HYD-9a0e9c

Enhance filtration efficiency with HYDAC MA Hydraulic Filter Element for Spin-On Filters. Reliable performance for industrial applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The HYDAC MA Hydraulic Filter Element is designed for Spin-On Filters, featuring a 10 µm filter rating, Aquamicron media type, and steel support tube. With a nominal filter rating of 10 µm and reliable Nitrile Rubber seal, this element ensures efficient filtration and performance. Operating between 0ºC to 100ºC, it meets stringent hydraulic filtration needs with a collapse rating of 6 bar, making it ideal for industrial applications.

Product Specifications

Dimensions Height

5.9 in | 149 mm

Dimensions Outside Diameter

3.7 in | 93 mm

Specifications Bun

Specifications Collapse Rating

6 bar

Specifications Configuration

Spin-On Can

Specifications Division

HYDRAULIC AND LUBE FILTERS

Specifications Filter Material

Other Synthetic

Specifications Filter Rating

10 Âµm

Specifications Flow Direction

Outside - In

Specifications Media Type

AM=Aquamicron

Specifications Model Code Description

0095MA010AM

Specifications Nominal Filter Rating

10 Âµm

Specifications Operating Temperature Max

100 ÂºC | 212 ÂºF

Specifications Operating Temperature Min

0 ÂºC | 32 ÂºF

Specifications Product

HYDAC ELEMENTS

Specifications Product Group Family

ELEMENTS-SPIN-ONS

Specifications Seal

Nitrile Rubber (NBR)

Specifications Size

0095

Specifications Stat Free

Specifications Support Tube Material

Steel

Specifications Thread Size

1.5 in.-16

Specifications Thread Type

Specifications Type

Hydraulic Filter Element

HYDAC MA Hydraulic Filter Element for Spin-On Filters
