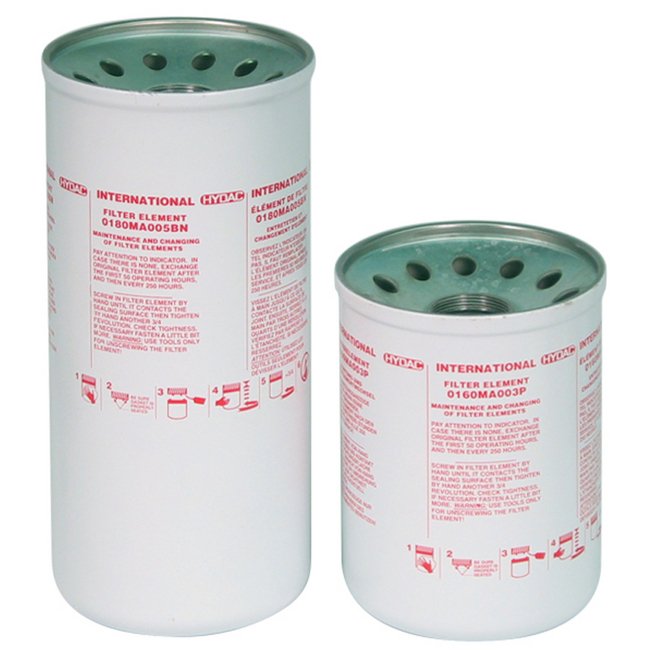

HYDAC MA Hydraulic Filter Element for Spin-On Filters
HYDAC MA Hydraulic Filter Element for Spin-On Filters
SKU:HYD-c51626
High-performance HYDAC MA Hydraulic Filter Element with 10 µm rating, ideal for hydraulic systems. Durable construction for reliable filtration.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
HYDAC MA Hydraulic Filter Element for Spin-On Filters
$32.99
Quantity: 1
Claim Your Seller Account
HYDAC MA Hydraulic Filter Element for Spin-On Filters
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC MA Hydraulic Filter Element is designed for optimal filtration efficiency, with a filter rating of 10 µm. Its spin-on can configuration with a nitrile rubber seal ensures secure installation and reliable performance. Made with high-quality cellulose filter material and a steel support tube, this element offers durability and precise filtration, suitable for hydraulic systems. Operating within a wide temperature range and featuring an outside-in flow direction, this filter element meets stringent industry standards and is ideal for both consumer and institutional applications.
Product Specifications
Dimensions Height
5.9 in | 149 mm
Dimensions Outside Diameter
3.7 in | 93 mm
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Material
Cellulose
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
P=Polyester Fleece / Cellulose
Specifications Model Code Description
0095MA010P
Specifications Nominal Filter Rating
10 µm
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-SPIN-ONS
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0095
Specifications Stat Free
No
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
