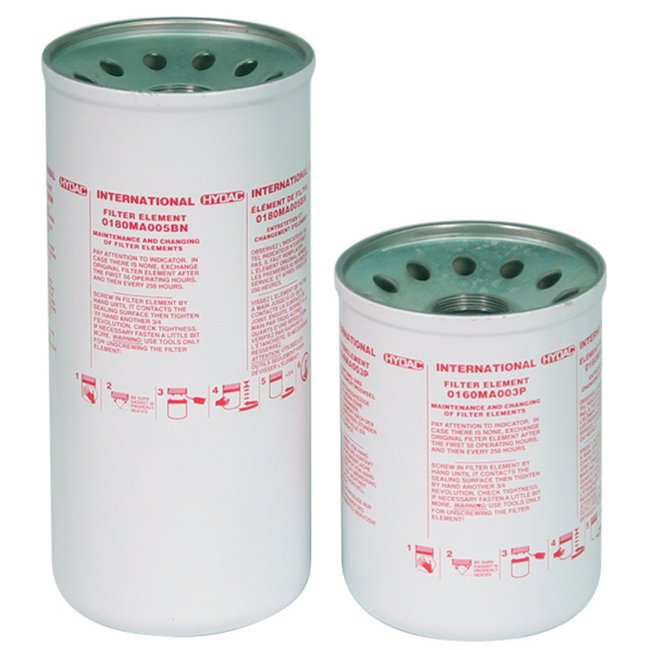

HYDAC MA Spin-On Filter Elements
HYDAC MA Spin-On Filter Elements
SKU:HYD-1906e9
Upgrade your hydraulic system with precision. HYDAC MA Spin-On Filter Elements deliver top filtration performance with 5µm rating & 99.5% efficiency.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
HYDAC MA Spin-On Filter Elements
$45.99
Quantity: 1
Claim Your Seller Account
HYDAC MA Spin-On Filter Elements
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your hydraulic system with HYDAC MA Spin-On Filter Elements. These Type MA filter elements feature a filter rating of 5µm, ensuring efficient contaminant removal. Constructed with steel support tube and microglass filter material, these elements offer reliable performance. With a Beta rating of β5 > 200 and 99.5% efficiency, they provide superior filtration. Operating between -30°C to 100°C, these elements are designed for durability and functionality. Upgrade to HYDAC MA Spin-On Filter Elements for top-notch filtration solutions.
Product Specifications
Dimensions Height
5.9 in | 149 mm
Dimensions Outside Diameter
3.7 in | 93 mm
Specifications Absolute Filter Rating
5 µm

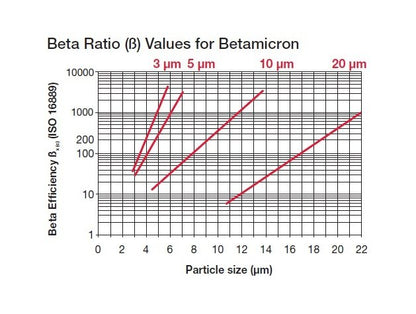

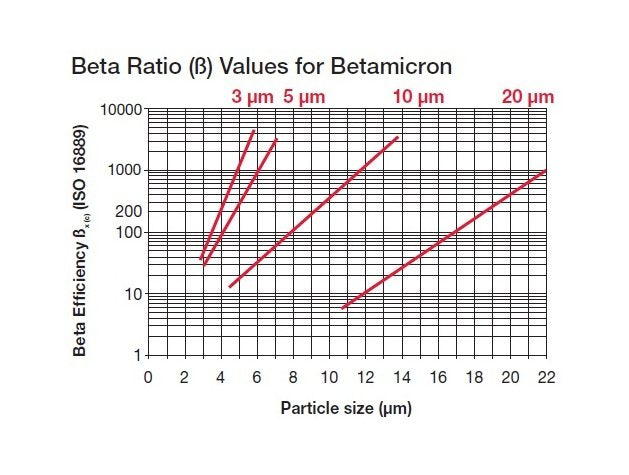

Specifications Beta Rating
β5 > 200
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Material
Microglass
Specifications Filter Rating
5 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
BN/HC=Betamicron® Low Capacity
Specifications Model Code Description
0090MA005BN
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-SPIN-ONS
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0090
Specifications Stat Free
No
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
