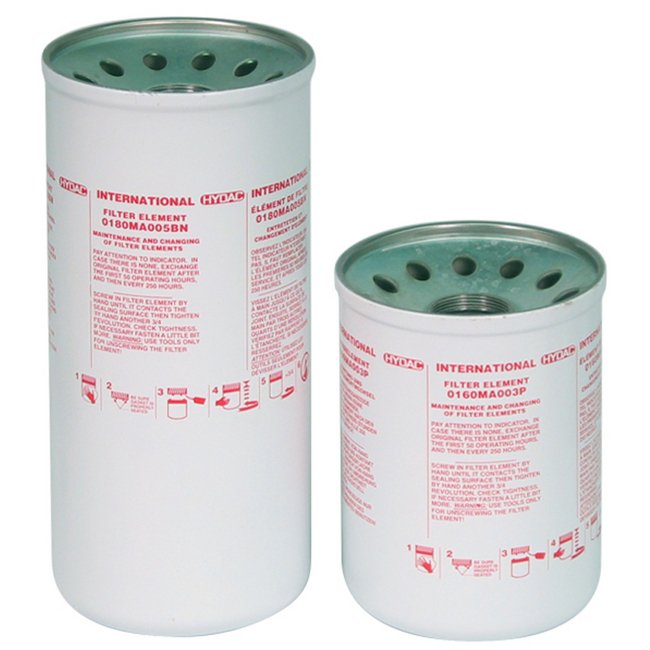

• HYDAC MA Spin-On Filter Elements - Image 1

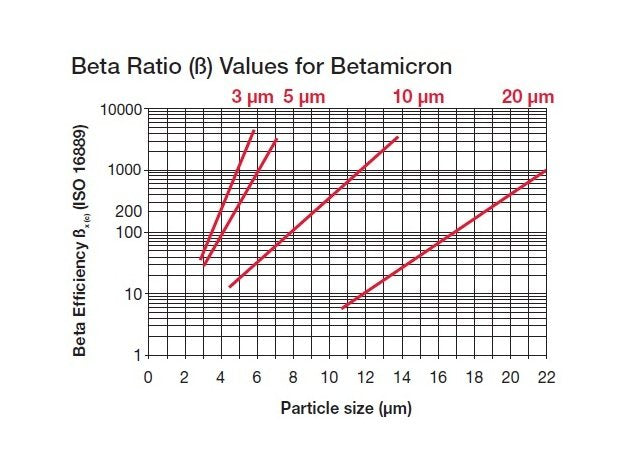

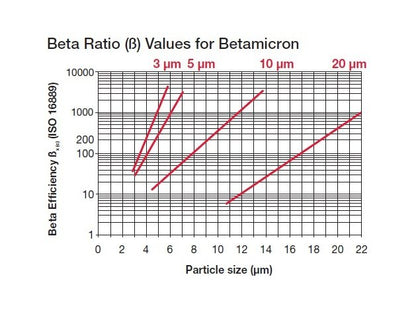

  • HYDAC MA Spin-On Filter Elements - Image 2

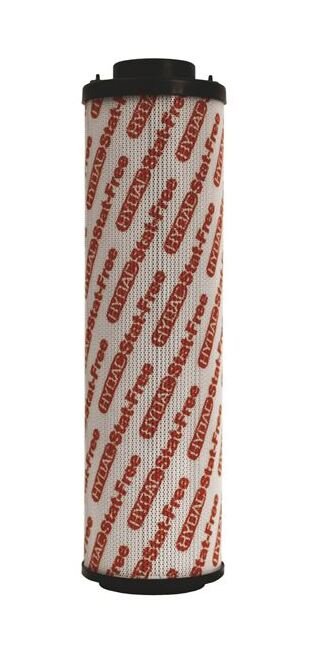

  • HYDAC MA Spin-On Filter Elements - Image 3

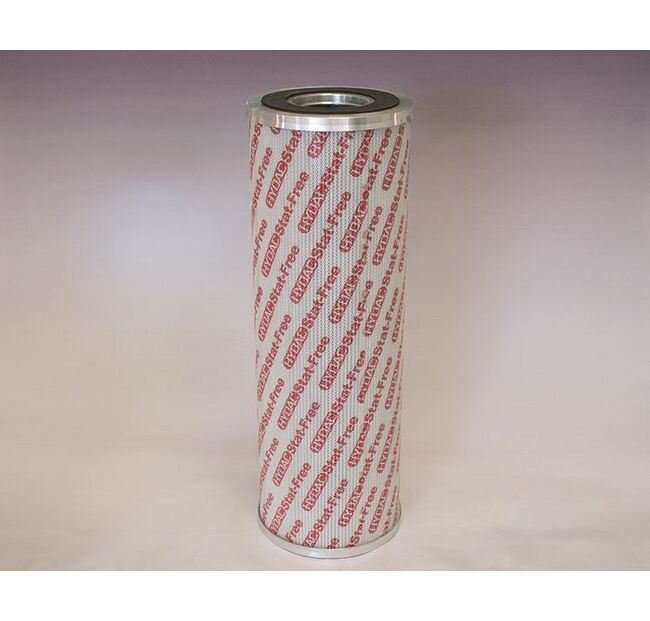

  • HYDAC MA Spin-On Filter Elements - Image 4
  • HYDAC MA Spin-On Filter Elements - Image 5
1 5
HYDAC Technology Corporation →

HYDAC MA Spin-On Filter Elements

HYDAC MA Spin-On Filter Elements

HYD-ee8bbb

Discover HYDAC MA Spin-On Filter Elements for top-tier hydraulic filtration. With 20 µm efficiency & Stat-Free design, these ensure peak performance.

$49.99
$49.99
Sale

Initiate Order

HYDAC MA Spin-On Filter Elements

HYDAC MA Spin-On Filter Elements

$49.99

Quantity: 1

Claim Your Seller Account

HYDAC MA Spin-On Filter Elements

HYDAC MA Spin-On Filter Elements

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The HYDAC Type MA Filter Elements are specially crafted for hydraulic systems, featuring a 20 µm filter rating and Betamicron® Low Collapse media for superior filtration efficiency. Designed with a Spin-On Can configuration and Nitrile Rubber seal, these elements assure reliable performance. With a Beta Rating of β20 > 200 and operating temperatures ranging from -30°C to 100°C, they offer exceptional filtration quality and durability. The steel support tube and microglass filter material ensure optimal flow direction and a collapse rating of 6 bar. Additionally, these elements minimize electrostatic charge generation, ensuring consistent performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Height
11 in | 279 mm
Dimensions Outside Diameter
5 in | 126 mm
Specifications Absolute Filter Rating
20 µm
Specifications Beta Rating
β20 > 200
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Efficiency
99.5 %
Specifications Filter Material
Microglass
Specifications Filter Rating
20 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Model Code Description
0180 MA 020 BN4HC /-SFREE
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0180
Specifications Stat Free
Yes
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
Supplementary Details 0
Element specially designed to minimize electrostatic charge generation.
