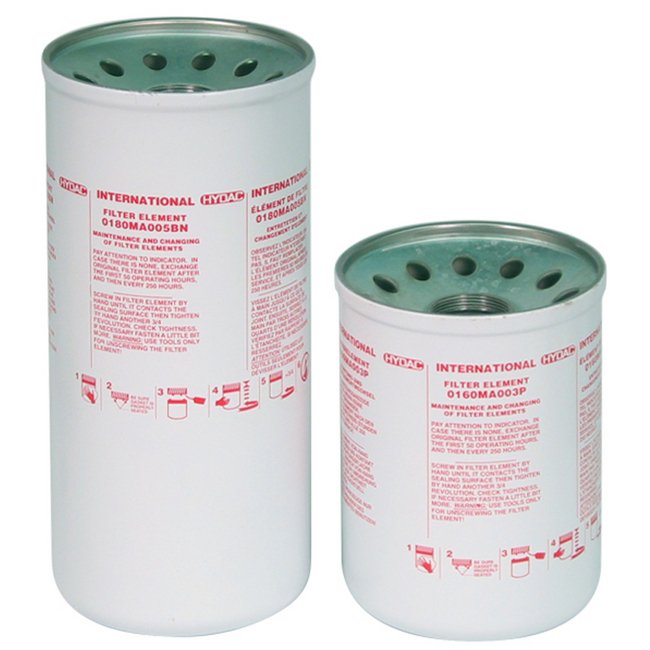

HYDAC MA Spin-On Filter Elements

HYDAC MA Spin-On Filter Elements

HYD-369c0e

Efficient HYDAC MA Filter Elements for hydraulic systems, 5 µm rating, Betamicron® Low Collapse media, durable construction.

$45.99
$45.99
Sale

Initiate Order

HYDAC MA Spin-On Filter Elements

HYDAC MA Spin-On Filter Elements

$45.99

Quantity: 1

Claim Your Seller Account

HYDAC MA Spin-On Filter Elements

HYDAC MA Spin-On Filter Elements

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The HYDAC MA Filter Elements are specifically designed for hydraulic filtration, featuring a 5 µm filter rating with Betamicron® Low Collapse media. These spin-on can elements ensure efficient filtration with 99.5% efficiency and a collapse rating of 6 bar. With a steel support tube and nitrile rubber seal, these elements offer durability and reliable performance. Operating temperatures ranging from -30°C to 100°C make them suitable for diverse industrial applications. Moreover, these elements minimize electrostatic charge generation, enhancing safety and longevity in use.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Height
11 in | 279 mm
Dimensions Outside Diameter
5 in | 126 mm
Specifications Absolute Filter Rating
5 µm
Specifications Beta Rating
β5 > 200
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Efficiency
99.5 %
Specifications Filter Material
Microglass
Specifications Filter Rating
5 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Model Code Description
0180 MA 005 BN4HC /-SFREE
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0180
Specifications Stat Free
Yes
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
Supplementary Details 0
Element specially designed to minimize electrostatic charge generation.
