HYDAC MA Spin-On Hydraulic Filter Element
HYDAC MA Spin-On Hydraulic Filter Element
SKU:HYD-87705c
High-performance HYDAC MA Spin-On Hydraulic Filter Element - 5 µm rating, β5 > 200 efficiency, durable construction for reliable filtration.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
HYDAC MA Spin-On Hydraulic Filter Element
$59.99
Quantity: 1
Claim Your Seller Account
HYDAC MA Spin-On Hydraulic Filter Element
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

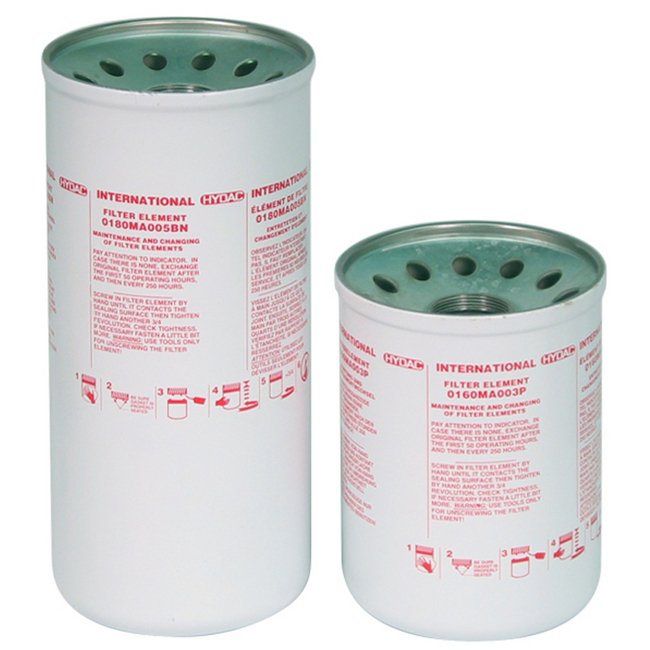

The HYDAC Filter Element Type MA is designed for hydraulic systems, featuring a 5 µm filter rating with a Beta Rating of β5 > 200 for exceptional filtration efficiency. This spin-on can configuration with a nitrile rubber seal ensures reliable operation. The Microglass filter material and steel support tube offer durability, while the outside-in flow direction and low temperature capabilities make it versatile for various applications. With 99.5% efficiency and a collapse rating of 6 bar, this filter element prioritizes system cleanliness and longevity.
Product Specifications
Dimensions Height
5.9 in | 149 mm
Dimensions Outside Diameter
3.7 in | 93 mm
Specifications Absolute Filter Rating
5 µm

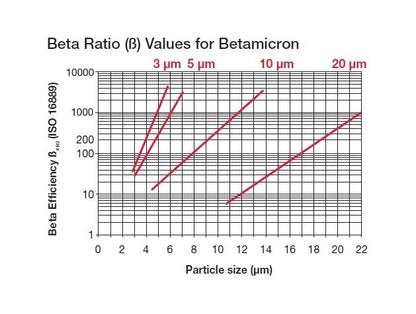

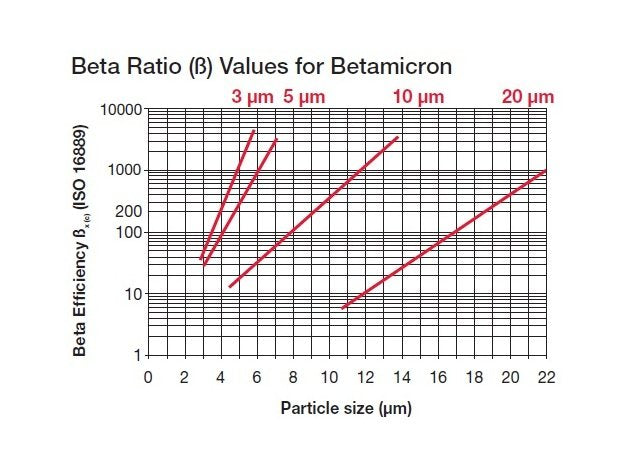

Specifications Beta Rating
β5 > 200
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Material
Microglass
Specifications Filter Rating
5 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
BN/HC=Betamicron® Low Capacity
Specifications Model Code Description
0095MA005BN
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-SPIN-ONS
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0095
Specifications Stat Free
No
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
