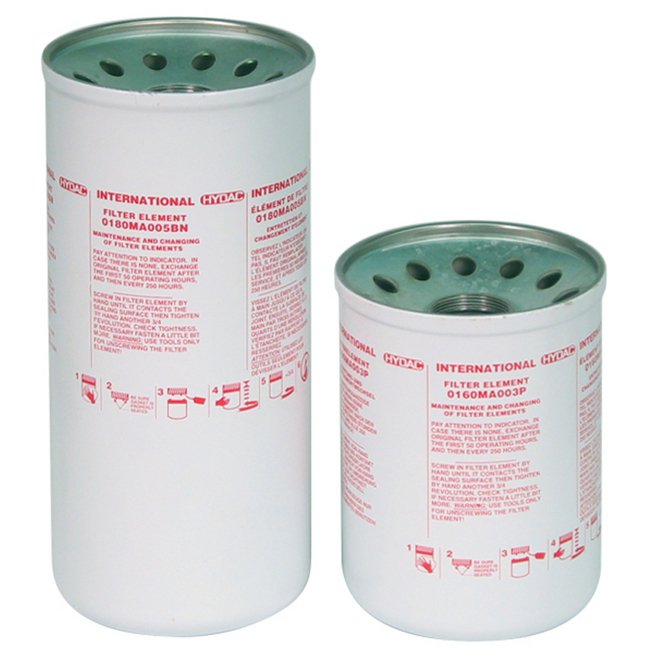

HYDAC MA Spin-On Hydraulic Filter Element 0160MA003BN
HYDAC MA Spin-On Hydraulic Filter Element 0160MA003BN
SKU:HYD-960656
High-quality HYDAC Type MA Hydraulic Filter Element for precise filtration, 3 µm filter rating, durable construction, and exceptional efficiency.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
HYDAC MA Spin-On Hydraulic Filter Element 0160MA003BN
$79.99
Quantity: 1
Claim Your Seller Account
HYDAC MA Spin-On Hydraulic Filter Element 0160MA003BN
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC Filter Element Type MA for Spin-On Filters, model 0160MA003BN, is a high-quality hydraulic filter designed for precision filtration with a filter rating of 3 µm. Featuring a Spin-On Can configuration with UN thread type and 1.5 in.-16 thread size, this element ensures efficient particle removal. The BN/HC Betamicron® Low Capacity media type combined with Microglass filter material guarantees exceptional filtration performance and an efficiency of 99.5%. With a robust steel support tube and Nitrile Rubber seal, this filter element is designed for durability and reliability in hydraulic systems. Meeting beta rating requirements of β3 > 200 and operating temperature ranges from -30°C to 100°C, the HYDAC Type MA Filter Element is a top choice for industrial and institutional applications.
Product Specifications
Dimensions Height
6.5 in | 166 mm
Dimensions Outside Diameter
5 in | 126 mm
Specifications Absolute Filter Rating
3 µm

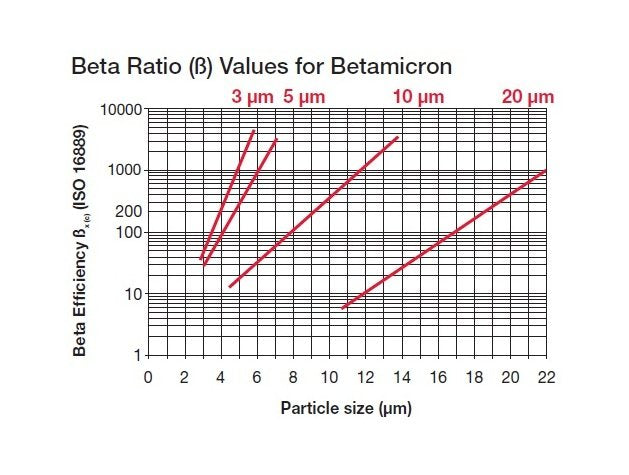

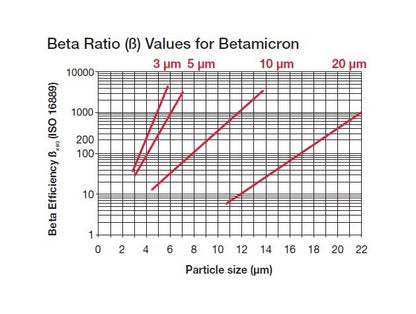

Specifications Beta Rating
β3 > 200
Specifications Bun
EA
Specifications Collapse Rating
6 bar
Specifications Configuration
Spin-On Can
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Material
Microglass
Specifications Filter Rating
3 µm
Specifications Flow Direction
Outside - In
Specifications Media Type
BN/HC=Betamicron® Low Capacity
Specifications Model Code Description
0160MA003BN
Specifications Operating Temperature Max
100 ºC | 212 ºF
Specifications Operating Temperature Min
-30 ºC | -22 ºF
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-SPIN-ONS
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0160
Specifications Stat Free
No
Specifications Support Tube Material
Steel
Specifications Thread Size
1.5 in.-16
Specifications Thread Type
UN
Specifications Type
Hydraulic Filter Element
