HYDAC MX 010 BN4HC Hydraulic Filter Element for MFX Pressure Filters
HYDAC MX 010 BN4HC Hydraulic Filter Element for MFX Pressure Filters
SKU:HYD-a8ae14
Enhance filtration with HYDAC MX 010 BN4HC Hydraulic Filter Element for MFX Pressure Filters - 10 µm efficiency, Betamicron® Low Collapse media.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
HYDAC MX 010 BN4HC Hydraulic Filter Element for MFX Pressure Filters
$32.99
Quantity: 1
Claim Your Seller Account
HYDAC MX 010 BN4HC Hydraulic Filter Element for MFX Pressure Filters
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

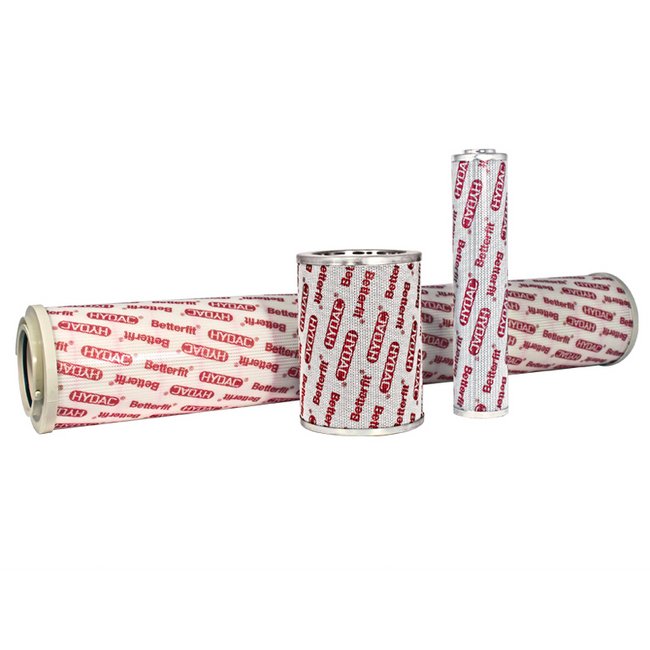

Upgrade your hydraulic system with the HYDAC MX 010 BN4HC Hydraulic Filter Element designed for MFX Pressure Filters. Featuring a Betamicron® Low Collapse media type, this cartridge-style filter element ensures superior filtration efficiency at 10 µm. With construction from high-quality Microglass material and one bypass cap, one closed cap configuration, this element offers reliable performance in industrial applications. Operating within a temperature range of -30 °C to 100 °C, it guarantees a 99.9% filtration efficiency, meeting the stringent requirements of hydraulic and lube filters.
Product Specifications
Dimensions Inside Diameter
27.5 mm | 1.083 in
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
1.7 bar | 25 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 2 Material
Plastic
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.252 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0100 MX 010 BN4HC /-B1.7
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Size
0100
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Plastic
Specifications Type
Hydraulic Filter Element
