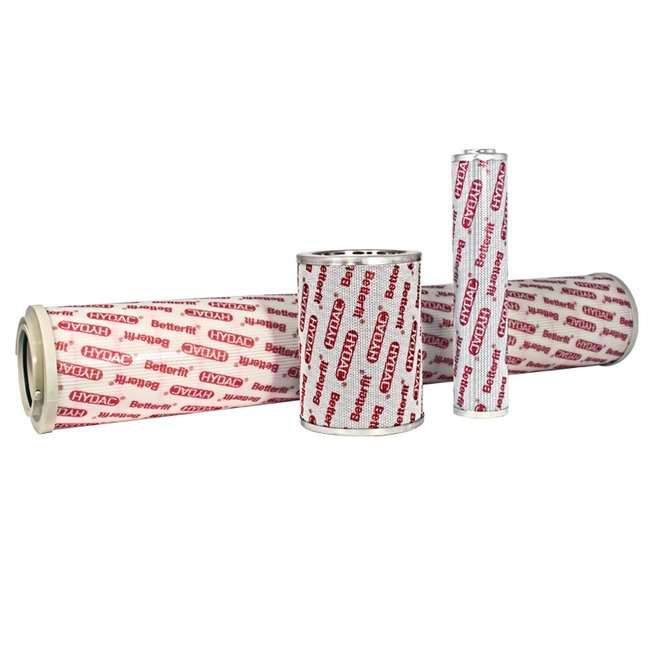

• HYDAC MX Filter Element for MFX Pressure Filters - Image 1
  • HYDAC MX Filter Element for MFX Pressure Filters - Image 2
1 2
HYDAC Technology Corporation →

HYDAC MX Filter Element for MFX Pressure Filters

HYDAC MX Filter Element for MFX Pressure Filters

HYD-212a9e

Enhance filtration with HYDAC MX Filter Element for MFX Pressure Filters. Optimal 5 µm filtration rating for peak performance.

$39.99
$39.99
Sale

Initiate Order

HYDAC MX Filter Element for MFX Pressure Filters

HYDAC MX Filter Element for MFX Pressure Filters

$39.99

Quantity: 1

Claim Your Seller Account

HYDAC MX Filter Element for MFX Pressure Filters

HYDAC MX Filter Element for MFX Pressure Filters

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The HYDAC Type MX Filter Element is designed for MFX Pressure Filters, featuring a BN/HC Betamicron® Low Collapse media type for superior hydraulic filtration. With a 5 µm filter rating and 99.9% efficiency, this hydraulic filter element ensures optimal performance and protection for your machinery. The cartridge-style element with plastic caps and support tube offers reliability and ease of maintenance, meeting stringent hydraulic and lube filter standards.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Dimensions Inside Diameter
27.5 mm | 1.083 in
Specifications Absolute Filter Rating
5 µm
Specifications Beta Rating
ßx(c) ≥ 1000
Specifications Bun
EA
Specifications Bypass Pressure
3.5 bar | 50 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 2 Material
Plastic
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
5 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.659 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0100 MX 005 BN4HC /-B3.5
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Size
0100
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Plastic
Specifications Type
Hydraulic Filter Element
