HYDAC MX Filter Elements for MFX Pressure Filters
HYDAC MX Filter Elements for MFX Pressure Filters
SKU:HYD-b43fb9
Optimize MFX Pressure Filters with HYDAC MX Filter Elements for reliable and efficient hydraulic filtration. Certified to meet industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
HYDAC MX Filter Elements for MFX Pressure Filters
$29.99
Quantity: 1
Claim Your Seller Account
HYDAC MX Filter Elements for MFX Pressure Filters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

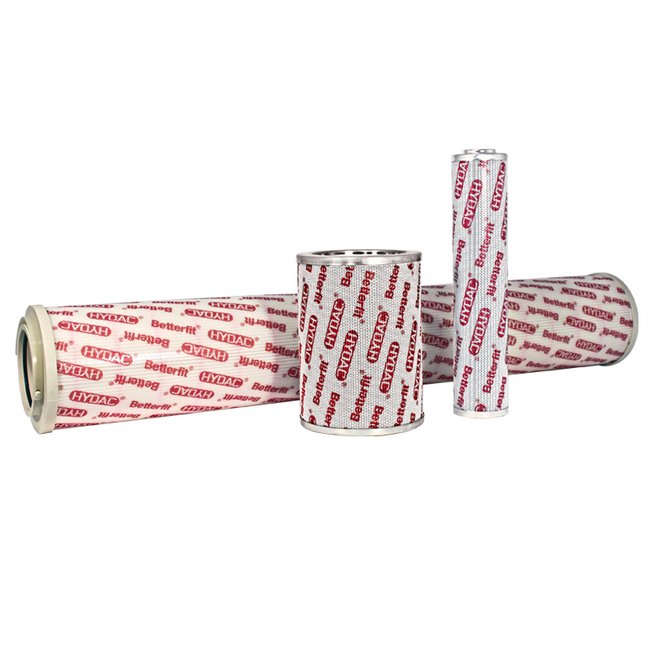

Enhance the performance of your MFX Pressure Filters with HYDAC Type MX Filter Elements. Featuring a Betamicron® Low Collapse media type with a filter rating of 3 µm, these hydraulic filter elements ensure superior filtration efficiency at 99.9%. Constructed with Microglass material and designed with one bypass cap and one closed cap configuration, they provide reliable filtration in hydraulic systems. With a temperature range from -30°C to 100°C, and certifications meeting industry-specific standards, these filter elements are ideal for government and institutional procurement needs.
Product Specifications
Dimensions Inside Diameter
27.5 mm | 1.083 in
Specifications Absolute Filter Rating
3 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3.5 bar | 50 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 2 Material
Plastic
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
3 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.384 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0200 MX 003 BN4HC /-B3.5
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Size
0200
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Plastic
Specifications Type
Hydraulic Filter Element
