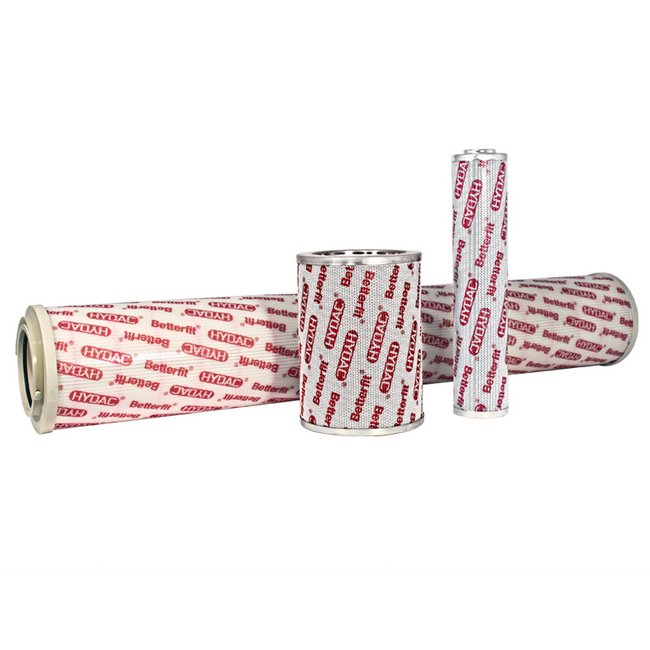

HYDAC MX Filter Elements for MFX Pressure Filters
HYDAC MX Filter Elements for MFX Pressure Filters
SKU:HYD-6d1e9f
Enhance hydraulic system performance with HYDAC MX Filter Elements for MFX Pressure Filters. Efficient 3µm filtration with 99.9% efficiency and durable construction.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
HYDAC MX Filter Elements for MFX Pressure Filters
$59.99
Quantity: 1
Claim Your Seller Account
HYDAC MX Filter Elements for MFX Pressure Filters
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance the performance of your hydraulic systems with HYDAC MX Filter Elements designed for MFX Pressure Filters. Engineered with Betamicron® Low Collapse media, these hydraulic filter elements offer efficient filtration down to 3µm, ensuring optimal system cleanliness and protection. Constructed with high-quality microglass material and featuring a cartridge style with a plastic bypass cap, these elements provide reliable filtration with a 99.9% efficiency rating. With a temperature range from -30°C to 100°C and a collapse rating of 20 bar, these elements deliver durability and longevity, meeting the stringent standards of hydraulic and lube filters.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Inside Diameter
27.5 mm | 1.083 in
Specifications Absolute Filter Rating
3 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3.5 bar | 50 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 2 Material
Plastic
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
3 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.659 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0100 MX 003 BN4HC /-B3.5
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Size
0100
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Plastic
Specifications Type
Hydraulic Filter Element
