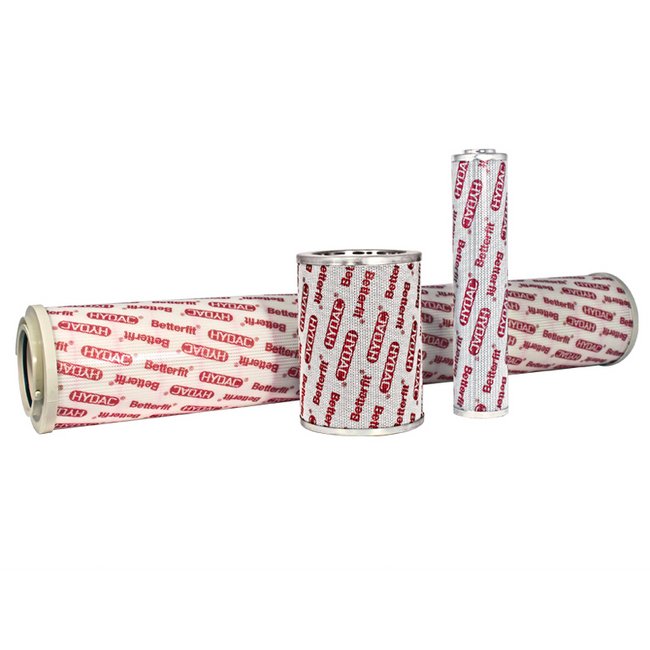

HYDAC MX Filter Elements for MFX Pressure Filters
HYDAC MX Filter Elements for MFX Pressure Filters
SKU:HYD-b15cc2
Maximize filtration efficiency with HYDAC MX Filter Elements for MFX Pressure Filters. Featuring BN/HC=Betamicron® Low Collapse media type and 20µm filter rating for exceptional performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC MX Filter Elements for MFX Pressure Filters
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC MX Filter Elements for MFX Pressure Filters
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance the filtration performance of your hydraulic system with HYDAC MX Filter Elements specially designed for MFX Pressure Filters. Featuring a BN/HC=Betamicron® Low Collapse media type and a filter rating of 20µm, these hydraulic filter elements offer exceptional efficiency at 99.9%. Constructed with high-quality microglass material and a cartridge style, each element is designed with precision to ensure optimal filtration. With a collapse rating of 20 bar and a bypass pressure of 3.5 bar, these filter elements provide reliable filtration under varying conditions. Experience superior filtration efficiency and protect your equipment with HYDAC MX Filter Elements.
Product Specifications
Dimensions Inside Diameter
27.5 mm | 1.083 in
Specifications Absolute Filter Rating
20 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3.5 bar | 50 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 2 Material
Plastic
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
20 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.187 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0100 MX 020 BN4HC /-B3.5
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Size
0100
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Plastic
Specifications Type
Hydraulic Filter Element
