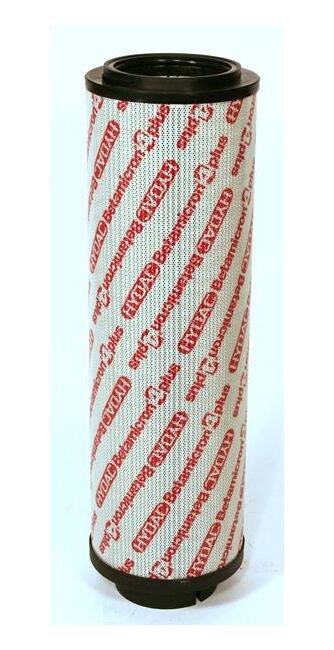

HYDAC MX Hydraulic Filter Element for MFX Pressure Filters
HYDAC MX Hydraulic Filter Element for MFX Pressure Filters
SKU:HYD-a5930b
Maximize filtration efficiency with HYDAC MX Hydraulic Filter Element for MFX Pressure Filters. 15 µm rating, 99.5% efficiency, and durable construction ensure superior performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC MX Hydraulic Filter Element for MFX Pressure Filters
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC MX Hydraulic Filter Element for MFX Pressure Filters
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance the performance and longevity of your MFX Pressure Filter with the HYDAC MX Hydraulic Filter Element. Designed with a 15 µm filter rating and 99.5% efficiency, this cartridge-style filter element ensures optimal filtration of hydraulic fluids. Its Microglass material and plastic caps provide durability, while the bypass pressure of 3.5 bar enhances system safety. With compliance to HYDAC proprietary standards, this filter element is an ideal choice for reliable hydraulic filtration in industrial and institutional applications.
Product Specifications
Dimensions Inside Diameter
27.5 mm | 1.083 in
Specifications Absolute Filter Rating
15 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3.5 bar | 50 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 2 Material
Plastic
Specifications Collapse Rating
10 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Rating
15 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.121 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
MM=Mobilemicron
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0100 MX 015 MM /-B3.5
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Size
0100
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Plastic
Specifications Type
Hydraulic Filter Element
