HYDAC MX Hydraulic Filter Element for MFX Pressure Filters
HYDAC MX Hydraulic Filter Element for MFX Pressure Filters
SKU:HYD-954042
Enhance hydraulic filtration with HYDAC MX Filter Element. 10 µm rating, 99.9% efficiency, and low collapse design.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
HYDAC MX Hydraulic Filter Element for MFX Pressure Filters
$39.99
Quantity: 1
Claim Your Seller Account
HYDAC MX Hydraulic Filter Element for MFX Pressure Filters
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

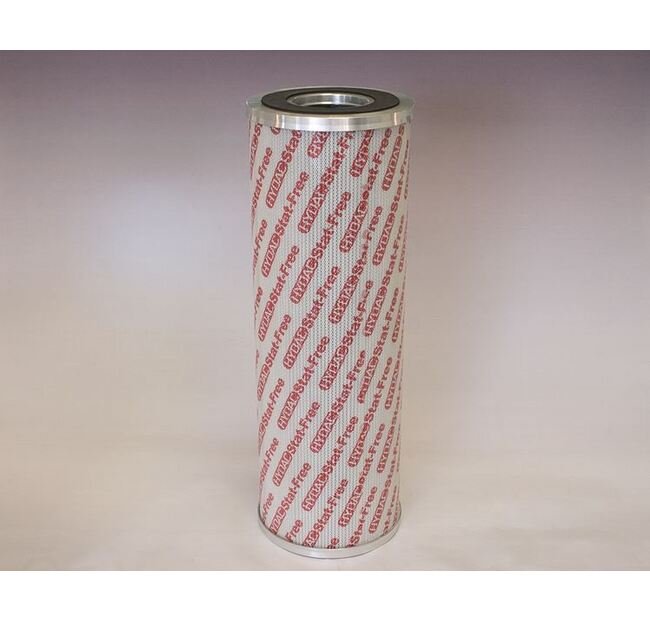

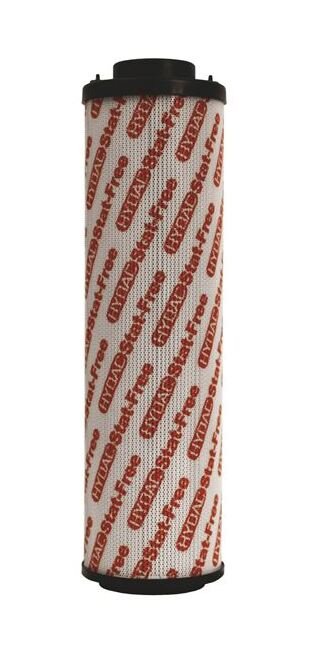

The HYDAC MX Hydraulic Filter Element is designed for MFX Pressure Filters, featuring a BN/HC Betamicron® Low Collapse media type for optimal filtration efficiency. With a 10 µm filter rating and microglass material, this cartridge-style filter element ensures 99.9% efficiency and a collapse rating of 20 bar. Its specialized design minimizes electrostatic charge generation, making it ideal for critical hydraulic applications. With plastic caps and support tube, this element is stat-free and operates within a temperature range of -30 °C to 100 °C, meeting stringent industry standards.
Product Specifications
Dimensions Inside Diameter
27.5 mm | 1.083 in
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3.5 bar | 50 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 2 Material
Plastic
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.148 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0200 MX 010 BN4HC /-B3.5-SFREE
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Size
0200
Specifications Stat Free
Yes
Specifications Style
Cartridge
Specifications Support Tube Material
Plastic
Specifications Type
Hydraulic Filter Element
Supplementary Details 0
Element specially designed to minimize electrostatic charge generation.
