HYDAC RK 0100 Hydraulic Filter Element
HYDAC RK 0100 Hydraulic Filter Element
SKU:HYD-0933a3
HYDAC RK 0100 Hydraulic Filter Element - Premium quality, 10 µm filtration, ideal for industrial applications
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC RK 0100 Hydraulic Filter Element
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC RK 0100 Hydraulic Filter Element
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

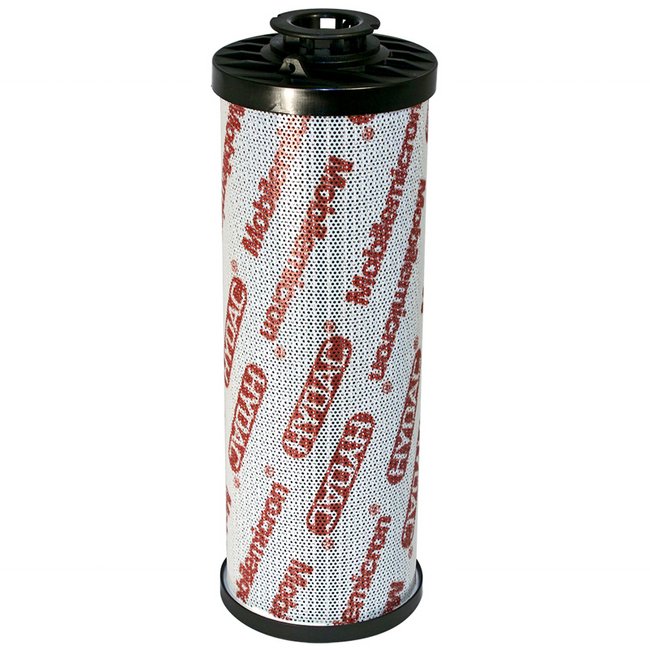

The HYDAC RK 0100 Hydraulic Filter Element is a top-of-the-line, Type RK cartridge filter designed for Multi Function Filters. This filter is expertly crafted with a 10 µm filter rating, ensuring exceptional filtration efficiency of 99.5%. The double open-end configuration, nitrile rubber seals, and microglass material guarantee durability and high performance. With a flow direction of outside-in and a maximum temperature tolerance of 100°C, this filter meets the most stringent hydraulic and lube filter standards. Ideal for industrial applications requiring precision filtration and reliable operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Inside Diameter
28 mm | 1.11 in
Dimensions Length
8.4 in | 213 mm
Dimensions Outside Diameter
2.5 in | 63 mm
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠200
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
O-Ring Cap
Specifications Collapse Rating
10 bar
Specifications Configuration
Double Open End
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
MM=Mobilemicron
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0100 RK 010 MM
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Size
0100
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
