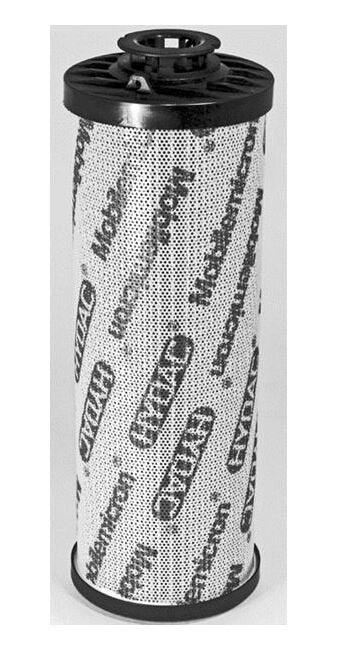

HYDAC RK 015 MM Hydraulic Filter Element
HYDAC RK 015 MM Hydraulic Filter Element
SKU:HYD-c9a5bb
Enhance filtration efficiency with HYDAC RK 015 MM Hydraulic Filter Element, designed for hydraulic/lube systems with 15 µm filter rating and durable construction.
Regular price
$65.99
Regular price
Sale price
$65.99
Unit price
per
Initiate Order
HYDAC RK 015 MM Hydraulic Filter Element
$65.99
Quantity: 1
Claim Your Seller Account
HYDAC RK 015 MM Hydraulic Filter Element
$65.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC RK 015 MM Hydraulic Filter Element is designed for superior filtration efficiency, meeting the stringent requirements of hydraulic and lube systems. With a filter rating of 15 µm, Nitrile Rubber seal, Microglass material, and a double open end configuration, this cartridge-style filter ensures optimal performance. Its steel support tube, plastic O-Ring Caps, and outer sleeve enhance durability while maintaining a flow direction of Outside-In. Operating temperature range from -30°C to 100°C, efficiency of 99.5%, and collapse rating of 10 bar make it a reliable choice for critical applications.
Product Specifications
Dimensions Inside Diameter
40 mm | 1.575 in
Dimensions Length
12.8 in | 324 mm
Dimensions Outside Diameter
3.5 in | 88 mm
Specifications Absolute Filter Rating
15 µm
Specifications Beta Rating
Ãx(c) ⥠200
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
O-Ring Cap
Specifications Collapse Rating
10 bar
Specifications Configuration
Double Open End
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Rating
15 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.026 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
MM=Mobilemicron
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0201 RK 015 MM
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Size
0201
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
