HYDAC RK Hydraulic Filter Element
HYDAC RK Hydraulic Filter Element
SKU:HYD-19048a
High-performance HYDAC RK Hydraulic Filter Element with 10 µm rating & 99.5% efficiency, ideal for multi-function filters.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC RK Hydraulic Filter Element
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC RK Hydraulic Filter Element
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

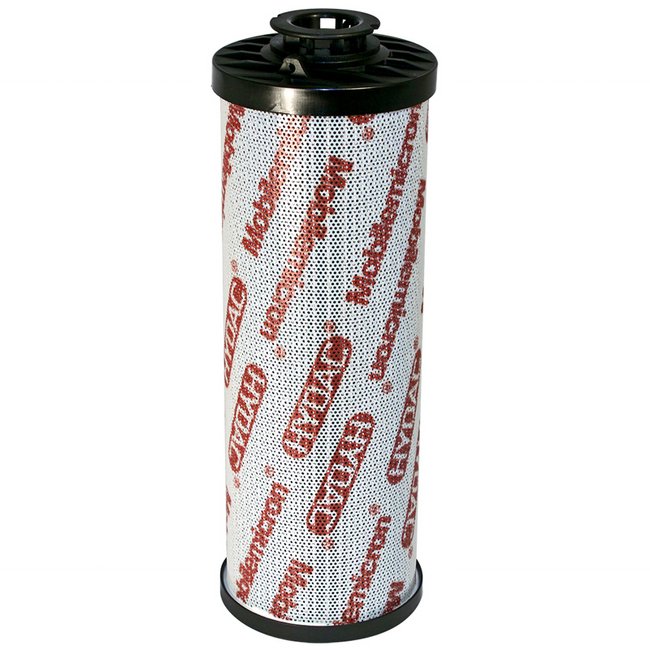

The HYDAC RK Hydraulic Filter Element is designed for optimum filtration in multi-function filters. With a filter rating of 10 µm and an efficiency of 99.5%, this Microglass cartridge element ensures superior particle removal. Its Nitrile Rubber seals and steel support tube provide durability and reliability in hydraulic systems. Compliant with industry standards, including HYDAC proprietary requirements, it meets the stringent filtration needs of both consumer and institutional buyers.
Product Specifications
Dimensions Inside Diameter
40 mm | 1.575 in
Dimensions Length
15.5 in | 392.5 mm
Dimensions Outside Diameter
3.5 in | 88 mm
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠200
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
O-Ring Cap
Specifications Collapse Rating
10 bar
Specifications Configuration
Double Open End
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
MM=Mobilemicron
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0251 RK 010 MM
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Size
0251
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
