HYDAC RK Hydraulic Filter Element for Multi Function Filters
HYDAC RK Hydraulic Filter Element for Multi Function Filters
SKU:HYD-08f5ee
Enhance filtration with the HYDAC RK Hydraulic Filter Element - 10 µm filter rating, superior efficiency, and durability for hydraulic and lube systems.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
HYDAC RK Hydraulic Filter Element for Multi Function Filters
$59.99
Quantity: 1
Claim Your Seller Account
HYDAC RK Hydraulic Filter Element for Multi Function Filters
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

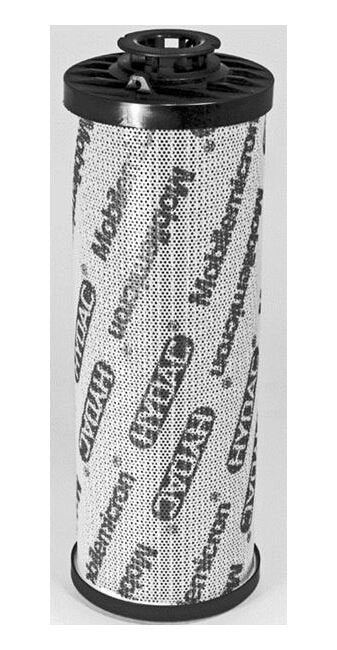

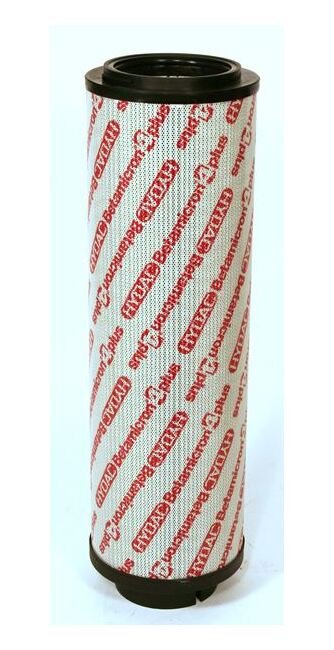

The HYDAC RK Hydraulic Filter Element is designed for use in multi-function filters, offering superior filtration performance with a filter rating of 10 µm. Crafted from high-quality microglass material, this cartridge-style filter element features a double open end configuration with O-ring caps made of durable plastic. With an efficiency rating of 99.5% and a collapse rating of 10 bar, this filter ensures optimal particle removal and structural integrity. Ideal for hydraulic and lube applications, the HYDAC RK element is built to withstand temperatures ranging from -30ºC to 100ºC, making it suitable for a wide range of operating conditions.
Product Specifications
Dimensions Inside Diameter
68 mm | 2.677 in
Dimensions Length
15.7 in | 398 mm
Dimensions Outside Diameter
4.5 in | 114 mm
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠200
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
O-Ring Cap
Specifications Collapse Rating
10 bar
Specifications Configuration
Double Open End
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.024 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
MM=Mobilemicron
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0800 RK 010 MM
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Size
0800
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
