HYDAC RK Hydraulic Filter Element for Multi Function Filters
HYDAC RK Hydraulic Filter Element for Multi Function Filters
SKU:HYD-956d7a
High-efficiency HYDAC RK Hydraulic Filter Element for precise 10 µm filtration, ensuring cleanliness and durability.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
HYDAC RK Hydraulic Filter Element for Multi Function Filters
$45.99
Quantity: 1
Claim Your Seller Account
HYDAC RK Hydraulic Filter Element for Multi Function Filters
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

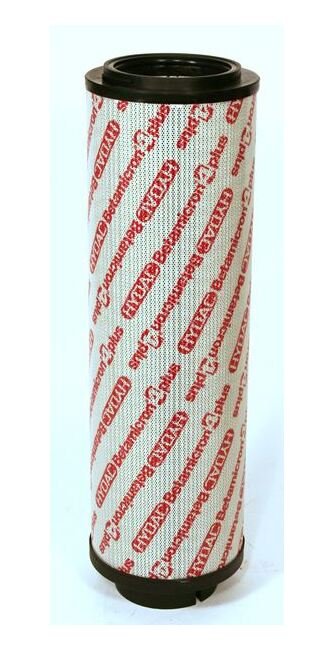

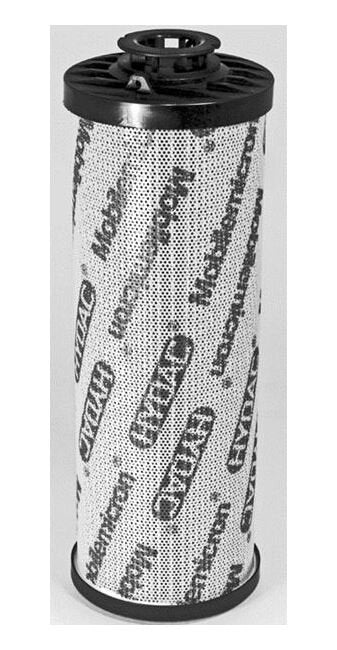

The HYDAC RK Hydraulic Filter Element is designed for high-performance filtration in multi-function filters. With a 10 µm filter rating and 99.5% efficiency, this cartridge-style element ensures optimal cleanliness of hydraulic fluids. Constructed with high-quality materials like Microglass and Nitrile Rubber (NBR) seals, it offers reliable filtration and durability. The element is encased in a double open-end configuration with plastic O-ring caps and a steel support tube, meeting stringent industry standards for hydraulic and lube filters.
Product Specifications
Dimensions Inside Diameter
68 mm | 2.677 in
Dimensions Length
12.5 in | 318 mm
Dimensions Outside Diameter
4.5 in | 114 mm
Specifications Absolute Filter Rating
10 µm
Specifications Beta Rating
Ãx(c) ⥠200
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
O-Ring Cap
Specifications Collapse Rating
10 bar
Specifications Configuration
Double Open End
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.5 %
Specifications Filter Rating
10 µm
Specifications Flow Direction
Outside - In
Specifications K Factor
0.031 psi/gpm
Specifications Material
Microglass
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
MM=Mobilemicron
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0400 RK 010 MM
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Size
0400
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
