HYDAC RN 0063 Hydraulic Filter Element
HYDAC RN 0063 Hydraulic Filter Element
SKU:HYD-707334
HYDAC RN 0063 Hydraulic Filter Element - 6µm filter rating, high efficiency for DIN Spec. 24550 Filters
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC RN 0063 Hydraulic Filter Element
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC RN 0063 Hydraulic Filter Element
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

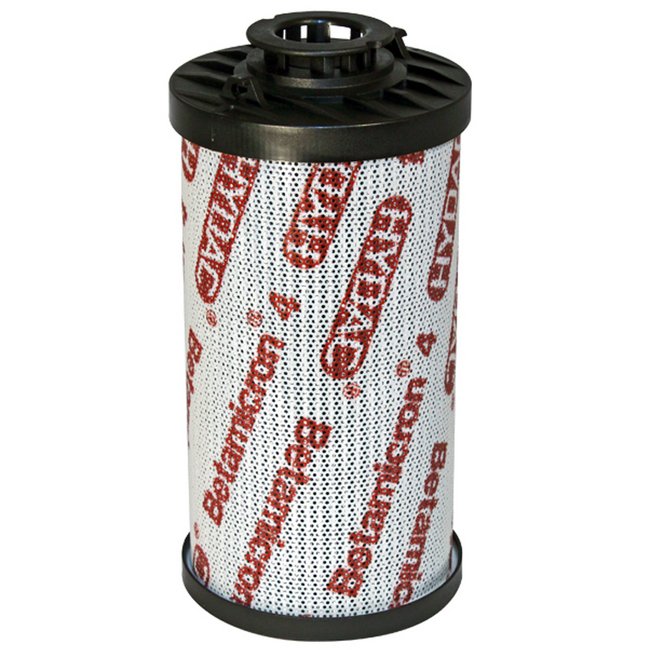

The HYDAC RN 0063 Hydraulic Filter Element is designed to meet the stringent requirements of DIN Spec. 24550 Filters. With a filter rating of 6µm and a high efficiency of 99.9%, this cartridge-style filter element ensures optimal cleanliness and protection for hydraulic systems. It features a microglass filter material, steel support tube, and plastic caps for reliable performance. The filter is designed with a bypass cap and a closed end cap configuration, providing excellent filtration and preventing system contamination. Operating within a temperature range of -30°C to 100°C, this filter element guarantees exceptional reliability and durability in diverse hydraulic applications.
Product Specifications
Dimensions Inside Diameter
32 mm | 1.26 in
Dimensions Length
6.3 in | 160 mm
Dimensions Outside Diameter
2.4 in | 60 mm
Specifications Absolute Filter Rating
6 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Bypass Pressure
3 bar | 43.5 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
Bypass Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
Closed End Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
One Bypass Cap, One Closed Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Material
Microglass
Specifications Filter Rating
6 µm
Specifications Flow Direction
Outside - In
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0063 RN 006 BN4HC /-V
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-DN/HF
Specifications Seal
Fluoroelastomer (FPM)
Specifications Size
0063
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
