HYDAC RN 1000 Hydraulic Filter Element for DIN 24550 Filters
HYDAC RN 1000 Hydraulic Filter Element for DIN 24550 Filters
SKU:HYD-df558e
HYDAC RN 1000 Hydraulic Filter Element - High efficiency, 3µm rating, DIN 24550 compliant
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
HYDAC RN 1000 Hydraulic Filter Element for DIN 24550 Filters
$59.99
Quantity: 1
Claim Your Seller Account
HYDAC RN 1000 Hydraulic Filter Element for DIN 24550 Filters
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

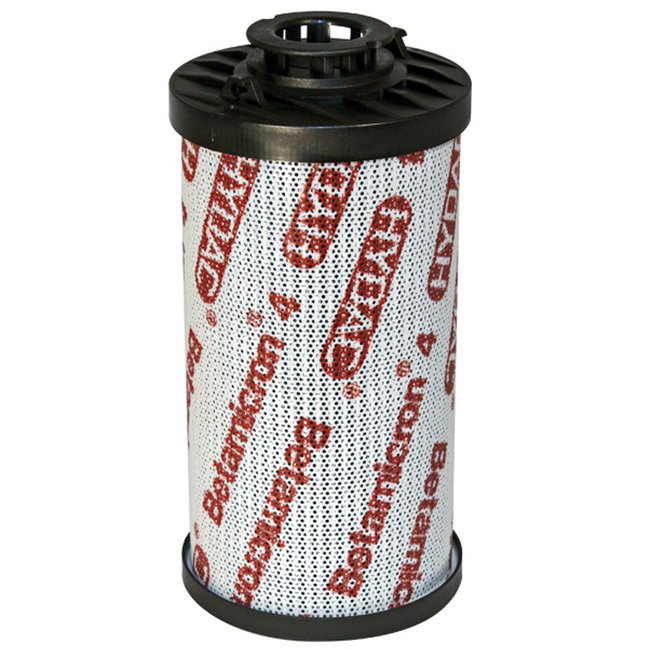

The HYDAC RN 1000 Hydraulic Filter Element is designed for precision filtration, featuring a 3µm filter rating, high efficiency of 99.9%, and a collapse rating of 20 bar. Made with Microglass filter material and Betamicron® Low Collapse media, this cartridge-style filter ensures superior contaminant removal. Its steel support tube, double open-end configuration, and O-Ring caps with Nitrile Rubber seals provide durability and a secure fit. With dimensions of 6.3in (160mm) OD and 15.7in (399mm) length, it meets DIN Spec. 24550 standards, making it ideal for hydraulic systems requiring reliable filtration.
Product Specifications
Dimensions Inside Diameter
90 mm | 3.543 in
Dimensions Length
15.7 in | 399 mm
Dimensions Outside Diameter
6.3 in | 160 mm
Specifications Absolute Filter Rating
3 µm
Specifications Beta Rating
Ãx(c) ⥠1000
Specifications Bun
EA
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
O-Ring Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
Double Open End
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Efficiency
99.9 %
Specifications Filter Material
Microglass
Specifications Filter Rating
3 µm
Specifications Flow Direction
Outside - In
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
BN/HC=Betamicron® Low Collapse
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
1000 RN 003 BN4HC
Specifications Outer Sleeve
Yes
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-DN/HF
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
1000
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
