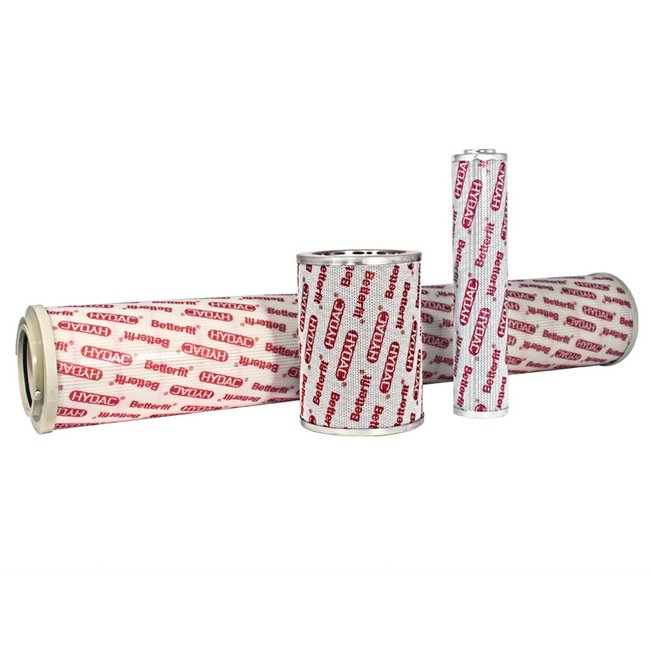

HYDAC RS 0330 Hydraulic Filter Element - 75µm Stainless Steel Mesh
HYDAC RS 0330 Hydraulic Filter Element - 75µm Stainless Steel Mesh
SKU:HYD-0b0b4c
Efficiently filter hydraulic fluids with HYDAC RS 0330 Filter Element - 75µm Stainless Steel Mesh. Ideal for hydraulic systems from -30ºC to 100ºC.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
HYDAC RS 0330 Hydraulic Filter Element - 75µm Stainless Steel Mesh
$49.99
Quantity: 1
Claim Your Seller Account
HYDAC RS 0330 Hydraulic Filter Element - 75µm Stainless Steel Mesh
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The HYDAC RS 0330 Hydraulic Filter Element is designed for hydraulic systems, featuring a 75µm filter rating with stainless steel mesh material. This Type RS cartridge style element includes one open cap, one bypass cap, and a steel support tube. With a flow direction from inside to out, it ensures efficient filtration from -30ºC to 100ºC. Meet your filtration needs reliably with this HYDAC proprietary element.
Product Specifications
Dimensions Dimension Id1
1.89 in
Dimensions Height
7.7 in | 196 mm
Dimensions Inside Diameter 1
40.2 mm
Dimensions Outside Diameter 1
3 in | 77 mm
Specifications Bun
EA
Specifications Bypass Pressure
0.3 bar | 4.4 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
Bypass Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
One Open Cap, One Bypass Cap
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Material
Stainless Steel Mesh
Specifications Filter Rating
75 µm
Specifications Flow Direction
Inside - Out
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
W=Stainless Steel Wire Mesh
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0330 RS 075 W
Specifications Nominal Filter Rating
75 µm
Specifications Outer Sleeve
No
Specifications Product
HYDAC ELEMENTS
Specifications Product Group Family
ELEMENTS-HYDAC PROPRIETARY
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0330
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
