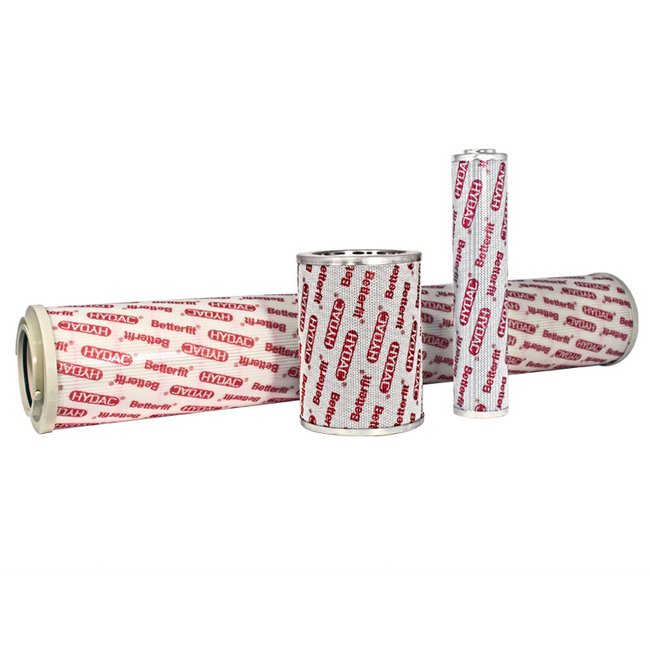

HYDAC RS Hydraulic Filter Element
HYDAC RS Hydraulic Filter Element
SKU:HYD-f0121f
Enhance hydraulic system filtration with HYDAC RS Filter. 10µm rating, polyester material, durable construction.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
HYDAC RS Hydraulic Filter Element
$45.99
Quantity: 1
Claim Your Seller Account
HYDAC RS Hydraulic Filter Element
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ensure efficient filtration in hydraulic systems with the HYDAC RS Hydraulic Filter Element. This Type RS filter is designed for Return/Suction filters and features a 10µm rating, polyester filter material, and sturdy construction with steel support tube. With a temperature range from -30°C to 100°C, this cartridge-style filter element provides reliable performance, durability, and seamless flow direction. Compliant with industry standards, it meets the rigorous filtration requirements of both consumer and institutional buyers.
Product Specifications
Dimensions Dimension Id1
1.339 in
Dimensions Height
8 in | 203 mm
Dimensions Inside Diameter 1
40.2 mm
Dimensions Outside Diameter 1
2.4 in | 60 mm
Specifications Bun
EA
Specifications Bypass Pressure
0.3 bar | 4.4 psi
Specifications Cap 1 Material
Plastic
Specifications Cap 1 Type
O-Ring Cap
Specifications Cap 2 Material
Plastic
Specifications Cap 2 Type
Bypass Cap
Specifications Collapse Rating
20 bar
Specifications Configuration
One Open Cap, One Bypass Cap
Specifications Filter Material
Polyester
Specifications Filter Rating
10 µm
Specifications Flow Direction
Inside - Out
Specifications Maximum Temperature
100 ºC | 212 ºF
Specifications Media Type
P=Polyester Fleece / Cellulose
Specifications Minimum Temperature
-30 ºC | -22 ºF
Specifications Model Code Description
0240 RS 010 P
Specifications Nominal Filter Rating
10 µm
Specifications Outer Sleeve
No
Specifications Seal
Nitrile Rubber (NBR)
Specifications Size
0240
Specifications Stat Free
No
Specifications Style
Cartridge
Specifications Support Tube Material
Steel
Specifications Type
Hydraulic Filter Element
