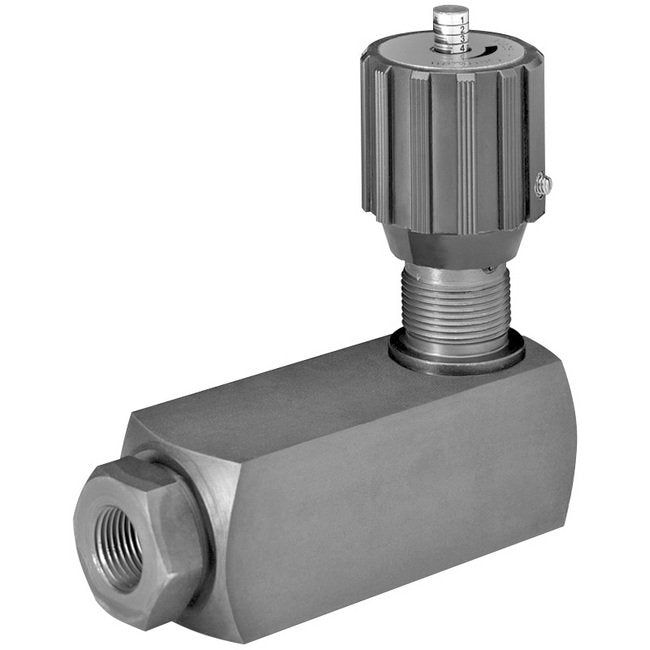

Hydac SRVR-10 BSPP Pressure Compensated Flow Control Valve w/ Check
Hydac SRVR-10 BSPP Pressure Compensated Flow Control Valve w/ Check
SKU:ACC-cf0bad
Hydac SRVR-10 Flow Control Valve w/ Check: DIN 3852 certified, precise flow regulation, durable carbon steel build, enhanced safety features.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Hydac SRVR-10 BSPP Pressure Compensated Flow Control Valve w/ Check
$189.99
Quantity: 1
Claim Your Seller Account
Hydac SRVR-10 BSPP Pressure Compensated Flow Control Valve w/ Check
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydac SRVR-10 BSPP Pressure Compensated Flow Control Valve with Check is a top-tier solution designed to meet the demanding needs of industrial applications. With a DIN 3852 certification, this flow control valve ensures precise control and regulation of fluid flow. Constructed with durable carbon steel and zinc-plated finish, it is built for longevity and reliable performance. Featuring color-coded spindle for accurate flow control and a unique safety spindle design, this valve offers enhanced safety and efficiency. With a wide operating temperature range and high-pressure capacity, it excels in various environments, making it a versatile choice for both consumer and institutional buyers.
Product Specifications
Dimensions Dimension B
3.23 in | 82 mm
Dimensions Dimension C
0.69 in | 17.5 mm
Dimensions Dimension D
1.38 in | 35 mm
Dimensions Dimension E
0.71 in | 18 mm
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0
Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Diameter G
1.50 in | 38 mm
Specifications Diameter H
0.91 in | 23 mm
Specifications Dimension A
3.62 in | 92 mm
Specifications Dimension F
4.13 in | 105 mm
Specifications Division
ACCESSORIES
Specifications End Size
G 3/8
Specifications End Type
BSPP
Specifications Finish
Zinc Plated
Specifications Hex Size
1.06 in | 27 mm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
DIN 3852
Specifications Model Code Description
SRVR-10-01.X/0
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
BSPP
Specifications Primary Image
SRVR Series_P
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Secondary Image
SRVR Series S
Specifications Second End Size
G 3/8
Specifications Second End Type
BSPP
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Valve Operator Material
Plastic
Specifications Weight
2.0 kg | 0.9 lb
Specifications Worksheet Tab Name
Hydac
