HYDAC Swivel Bolt Band Clamp
HYDAC Swivel Bolt Band Clamp
SKU:ACC-d81a80
Secure non-cylindrical objects with precision using the HYDAC Swivel Bolt Band Clamp. Stainless steel construction for durability and reliability.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
HYDAC Swivel Bolt Band Clamp
$34.99
Quantity: 1
Claim Your Seller Account
HYDAC Swivel Bolt Band Clamp
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

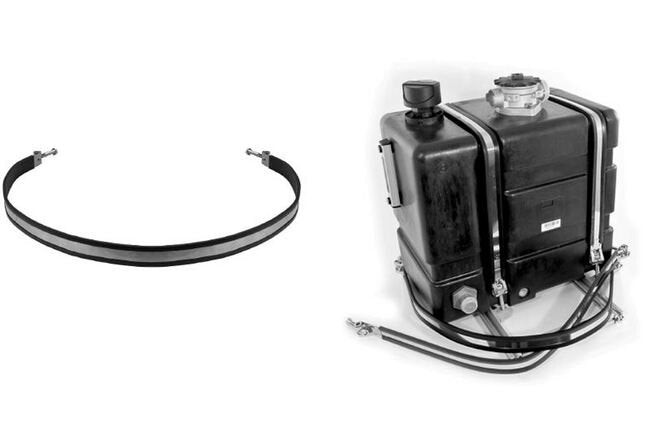

The HYDAC Swivel Bolt Band Clamp is a robust solution designed for OEMs requiring secure mounting of non-cylindrical objects like plastic fuel tanks. Constructed with high-quality stainless steel clamping bands and a swivel bolt locking mechanism, this band clamp ensures durability and reliability. The EPDM profile material offers excellent resistance to environmental factors, while the carbon steel components ensure strength. With precise dimensions meeting industry standards, including a thickness of 1.5mm and adjustable diameter range of 15.9 to 16.8 inches, this clamp provides a secure and versatile mounting solution.
Ready to Grow Without Cash Flow Constraints?

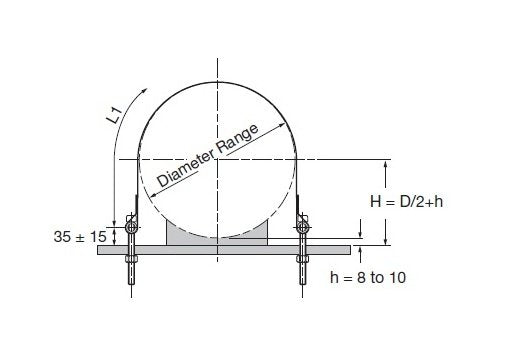

Product Specifications
Dimensions Diameter Max
16.8 in | 426 mm
Dimensions Diameter Min
15.9 in | 404 mm
Dimensions Length L1
40.2 in | 1022 mm
Dimensions Thickness
1.5 mm
Dimensions Width
30 mm
Specifications Bun
EA
Specifications Clamping Band Material
Stainless Steel
Specifications Locking Type
Swivel Bolt
Specifications Metal Components Materials
Carbon Steel
Specifications Model Code Description
HRSGBLPU 30 G1 334 ST
Specifications Profile Material
EPDM
Specifications Type
Swivel Bolt Band Clamp
Specifications Type Number
334
