Hydraulic Check Valve Female Tee Needle Valve BSP Taper
Hydraulic Check Valve Female Tee Needle Valve BSP Taper
SKU:VAL-a3c568
Durable Hydraulic Check Valve for DIN systems, Pressure: 350 bar, G-Thread Size: 3/8. Enhance control and safety.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Hydraulic Check Valve Female Tee Needle Valve BSP Taper
$59.99
Quantity: 1
Claim Your Seller Account
Hydraulic Check Valve Female Tee Needle Valve BSP Taper
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Check Valve Female Tee Needle Valve BSP Taper is a versatile valve suitable for Extra Light Duty, Heavy Duty, and Light Duty applications with a Nominal Operating Pressure of 350 bar. Crafted from durable Carbon Steel, this valve features precise G-Thread Size of 3/8, ensuring reliability and optimal performance. Ideal for DIN Valve systems, it offers enhanced control and safety in hydraulic applications.

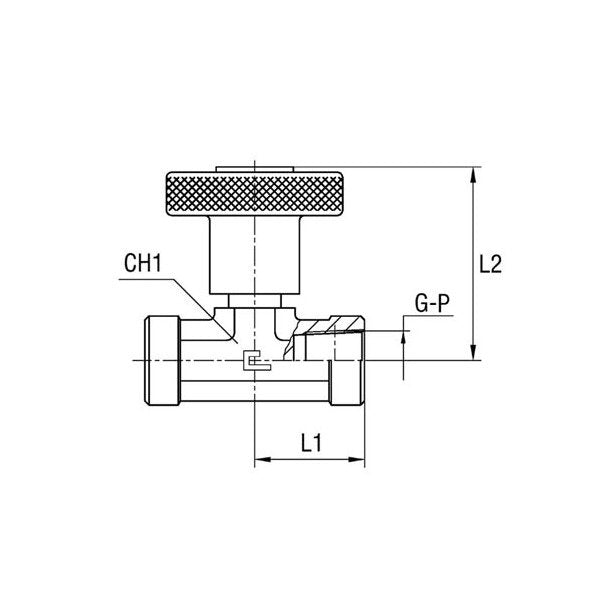

Product Specifications
Specifications Ch1
22 mm
Specifications G Thread Size
3/8
Specifications L1
32.0 mm
Specifications L2
60 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
