Hydraulic Check Valve - Male Stud Non Return Valve with Elastomer Seal, BSP Parallel
Hydraulic Check Valve - Male Stud Non Return Valve with Elastomer Seal, BSP Parallel
SKU:VAL-5ddd89
Durable stainless steel Male Stud Non Return Valve for hydraulic systems, designed for light-duty operations with 100 bar pressure.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Hydraulic Check Valve - Male Stud Non Return Valve with Elastomer Seal, BSP Parallel
$79.99
Quantity: 1
Claim Your Seller Account
Hydraulic Check Valve - Male Stud Non Return Valve with Elastomer Seal, BSP Parallel
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal Thread is designed for light-duty operations with a nominal operating pressure of 100 bar. Crafted from durable stainless steel, this valve ensures reliable performance in hydraulic systems. Featuring a 35.0mm tube diameter, 25mm diameter pass, and G-thread size of 1 1/4, it is equipped with B3 Ring for enhanced sealing. With dimensions meeting institutional requirements, this valve is ideal for hydraulic applications in various industries.

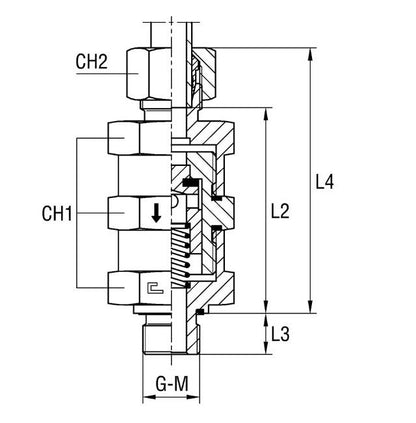

Product Specifications
Specifications Ch1
70 mm
Specifications Ch2
50 mm
Specifications Diameter Pass
25 mm
Specifications G Thread Size
1 1/4
Specifications L2
92.5 mm
Specifications L3
20.0 mm
Specifications L4
114 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
35.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
