Hydraulic Check Valve with B4 Ring for Light Duty Applications
Hydraulic Check Valve with B4 Ring for Light Duty Applications
SKU:FIT-c7a2b6
Ensure reliable fluid control with this Equal Non Return Valve. Designed for light-duty hydraulic systems, it offers precision and durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Hydraulic Check Valve with B4 Ring for Light Duty Applications
$49.99
Quantity: 1
Claim Your Seller Account
Hydraulic Check Valve with B4 Ring for Light Duty Applications
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

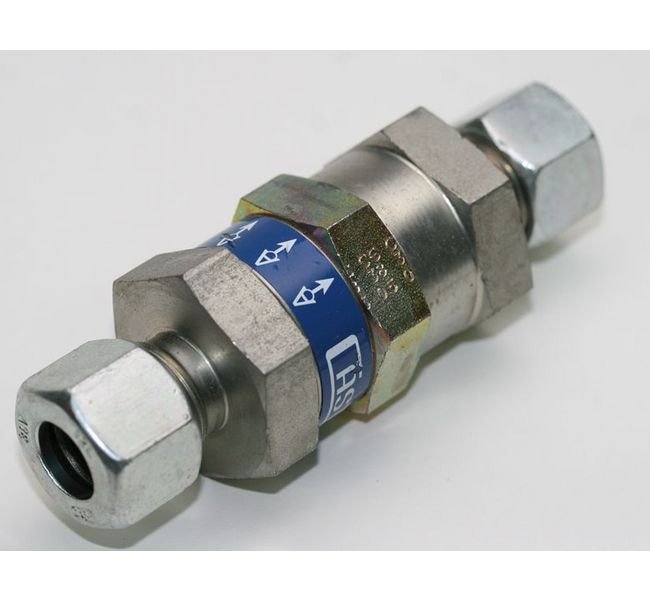

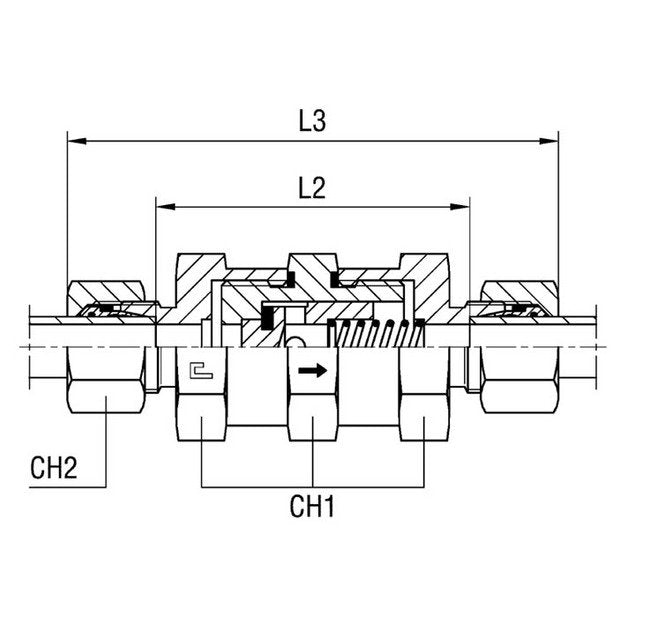

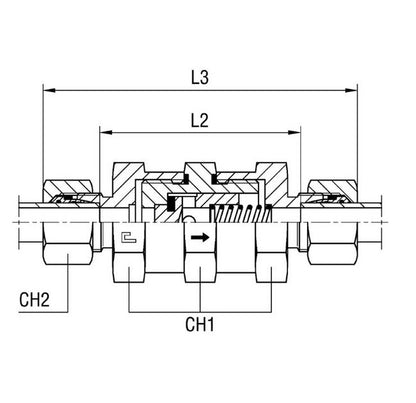

The Equal Non Return Valve with B4 Ring is engineered for superior performance in light-duty hydraulic systems. With a Nominal Operating Pressure of 100 bar and a Tube Diameter of 35.0 mm, this valve ensures reliable operation. Crafted from durable Carbon Steel, it features precise dimensions including L2 at 95 mm, L3 at 138 mm, and CH1 and CH2 at 70 mm and 50 mm respectively. The Diameter Pass. of 29 mm guarantees efficient fluid control, making it an ideal choice for hydraulic check valve applications.
Product Specifications
Specifications Ch1
70 mm
Specifications Ch2
50 mm
Specifications Diameter Pass
29 mm
Specifications L2
95 mm
Specifications L3
138 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
35.0 mm
