Hydraulic Check Valve with Elastomer Seal - Male Stud, Metric Parallel Thread

Name: Hydraulic Check Valve with Elastomer Seal - Male Stud, Metric Parallel Thread
Brand: World Wide Metric, Inc.
SKU: VAL-92948b
Price: 79.99 USD
Availability: OutOfStock

SKU:VAL-92948b

High-quality Hydraulic Check Valve for light-duty applications with precise stainless steel construction and compliance with industry standards.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

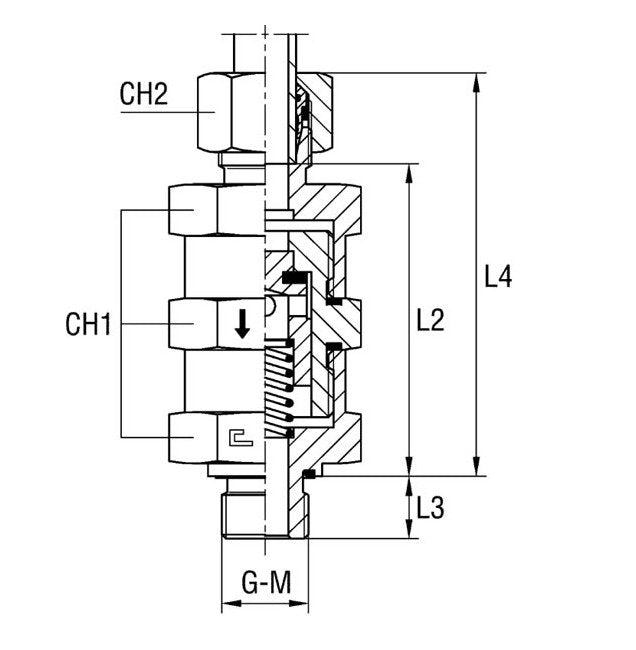

The Male Stud Non Return Valve with Elastomer Seal is a high-quality hydraulic component suitable for light-duty applications with a nominal operating pressure of 160 bar. Crafted from durable stainless steel, this valve features precise specifications including M - Thread Size 22x1.5, Tube Diameter 18.0mm, and length measurements tailored for optimal performance. With a diameter pass of 11mm and CH1 and CH2 dimensions of 41mm and 32mm respectively, this valve ensures reliable flow control and sealing, making it a dependable choice for hydraulic systems. Compliant with industry standards, this valve guarantees efficient operation and longevity, meeting the requirements of discerning buyers.

Product Specifications

Specifications Ch1

41 mm

Specifications Ch2

32 mm

Specifications Diameter Pass

11 mm

Specifications L2

64.5 mm

Specifications L3

14.0 mm

Specifications L4

80.5 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

18.0 mm

Category 6

Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
