Hydraulic Check Valve with Male Stud & O-ring Thread - Stainless Steel, UNF/UN-2A
Hydraulic Check Valve with Male Stud & O-ring Thread - Stainless Steel, UNF/UN-2A
SKU:VAL-f35b8d
High-pressure Hydraulic Check Valve for secure flow control. Stainless steel construction for durability & reliability.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Hydraulic Check Valve with Male Stud & O-ring Thread - Stainless Steel, UNF/UN-2A
$59.99
Quantity: 1
Claim Your Seller Account
Hydraulic Check Valve with Male Stud & O-ring Thread - Stainless Steel, UNF/UN-2A
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Check Valve with Male Stud & O-ring Thread is designed for durability and reliability. With a pressure rating of up to 400 bar, this valve ensures secure flow control in hydraulic systems. Crafted from high-quality stainless steel, it offers resistance to corrosion and wear, making it an ideal choice for industrial applications. The precise engineering of this valve guarantees optimal performance, while its UNF/UN-2A threading ensures a tight, leak-free seal. Meet your stringent hydraulic system needs with this premium quality check valve.
Ready to Grow Without Cash Flow Constraints?

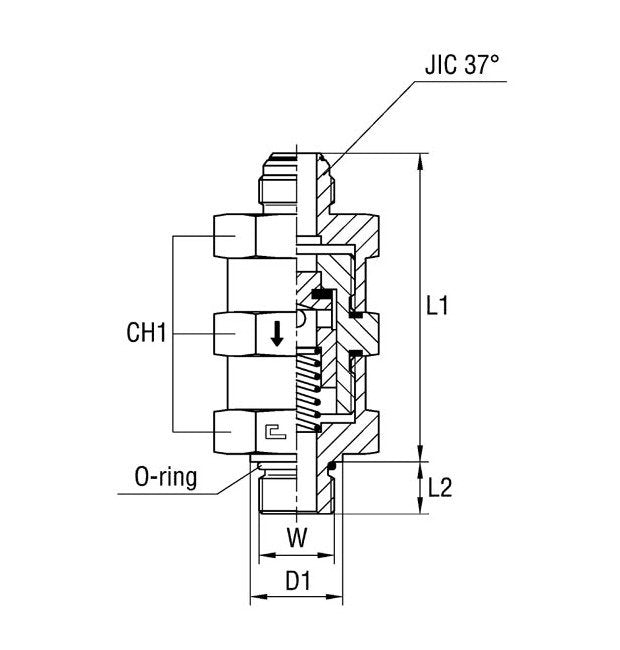

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
13.8 mm
Specifications Diameter Pass
2.8 mm
Specifications Jic 37 Thread
7/16-20
Specifications L1
62.5 mm
Specifications L2
9.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
6 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
7/16-20
Specifications W Tube Diameter
1/4 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
