Hydraulic Drum Compactor - 37" W x 38-3/16" L, 230V Voltage
Hydraulic Drum Compactor - 37" W x 38-3/16" L, 230V Voltage
SKU:DRU-3a58f2
Heavy-duty Hydraulic Drum Compactor for crushing and compacting 55-gallon drums. Meets ANSI, JIC, OSHA standards.
Regular price
$4,799.99
Regular price
Sale price
$4,799.99
Unit price
per
Initiate Order
Hydraulic Drum Compactor - 37" W x 38-3/16" L, 230V Voltage
$4,799.99
Quantity: 1
Claim Your Seller Account
Hydraulic Drum Compactor - 37" W x 38-3/16" L, 230V Voltage
$4,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Drum Compactor is a heavy-duty unit designed to crush or compact up to 250 drums per week. With a crushing force capacity of 38000 lb, it accommodates drums up to 55 gallons. This dual-function equipment allows for both drum crushing and compacting, providing versatility and efficiency in waste management processes. Safety features include a pressure relief valve, double door latch, and an interlock system to ensure secure operation. Meets ANSI Z245.5, JIC, and OSHA 1910.212 standards.
Product Specifications
Additional Information
Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp., 60 hz. meets OSHA 1910.212/ANSI Z245.5/JIC standards. Built-in fork pockets aid in transporting. Aluminum drip pan for catching any excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"D x 1-5/8"H.
Features

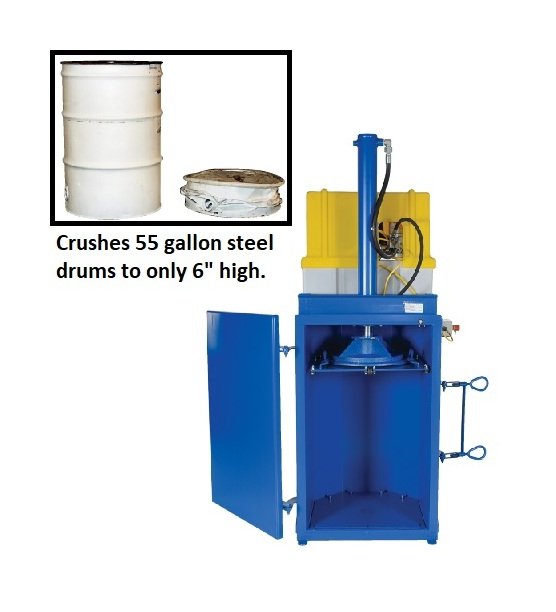

Crushes 55 gallon steel drums approximately 6" high and resets automatically to crush another drum in only 25 seconds. Single phase available.
Note
FOB Shipping Point.
Specifications Crushing Force Capacity
38000 lb
Specifications Height
91 in
Specifications Industry Standards
American National Standards Institute (ANSI Z245.5) | Joint Industrial Council (JIC) | Occupational Safety and Health Administration (OSHA 1910.212)
Specifications Length
38-3/16 in
Specifications Voltage
230 V
Specifications Weight
1570 lb
Specifications Width
37 in
