Hydraulic Equal Non Return Valve - B3 Ring, DIN Check Valve

Hydraulic Equal Non Return Valve - B3 Ring, DIN Check Valve

VAL-222f5a

Durable Hydraulic Non Return Valve for light-duty applications, 250 bar pressure, carbon steel construction, compact design.

$29.99
$29.99
Sale

Initiate Order

Hydraulic Equal Non Return Valve - B3 Ring, DIN Check Valve

Hydraulic Equal Non Return Valve - B3 Ring, DIN Check Valve

$29.99

Quantity: 1

Claim Your Seller Account

Hydraulic Equal Non Return Valve - B3 Ring, DIN Check Valve

Hydraulic Equal Non Return Valve - B3 Ring, DIN Check Valve

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

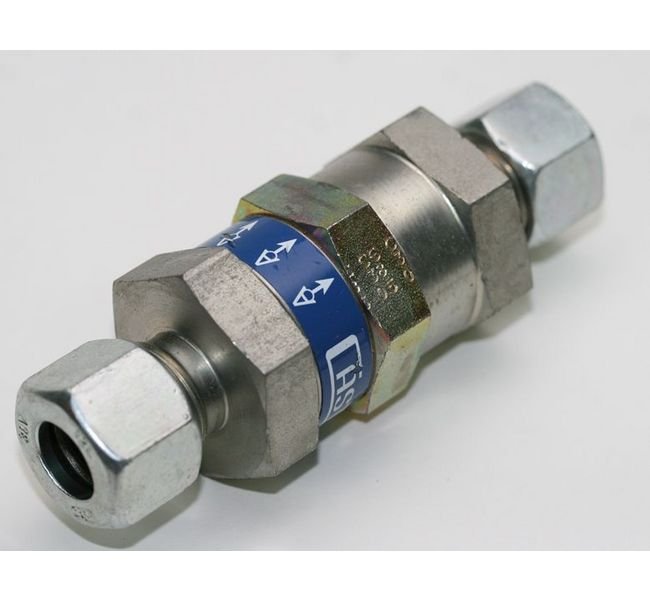

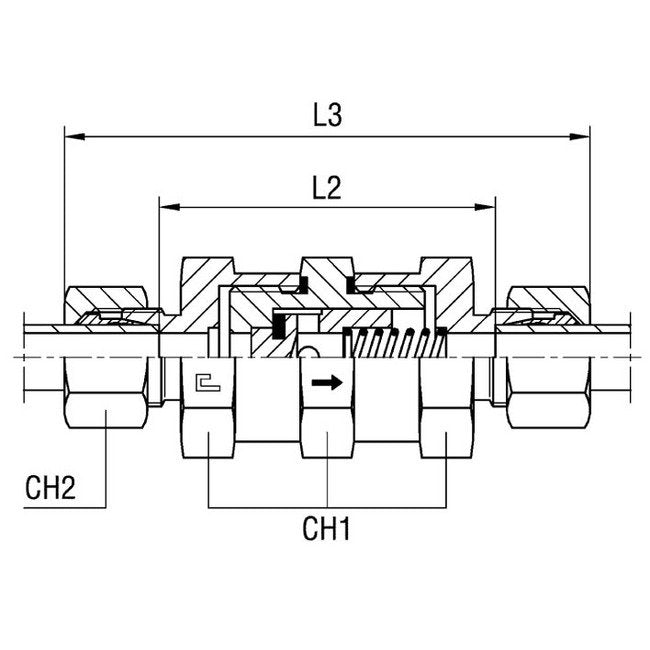

The Hydraulic Equal Non Return Valve with B3 Ring is designed for light-duty applications, with a nominal operating pressure of 250 bar. Made of durable carbon steel, this valve features a tube diameter of 10.0 mm and diameter pass of 4 mm. Its compact design, with dimensions L2: 56 mm and L3: 85 mm, along with CH1 and CH2 of 19.0 mm each, ensures reliable performance in hydraulic systems.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Diameter Pass
4 mm
Specifications L2
56 mm
Specifications L3
85 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
10.0 mm
Category 6
Equal Non Return Valve
