Hydraulic Equal Non Return Valve - Standard Body, Carbon Steel

Name: Hydraulic Equal Non Return Valve - Standard Body, Carbon Steel
Brand: World Wide Metric, Inc.
SKU: FIT-8ef6fb
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-8ef6fb

Hydraulic Equal Non Return Valve - Reliable flow control and 350 bar pressure capacity for hydraulic systems.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

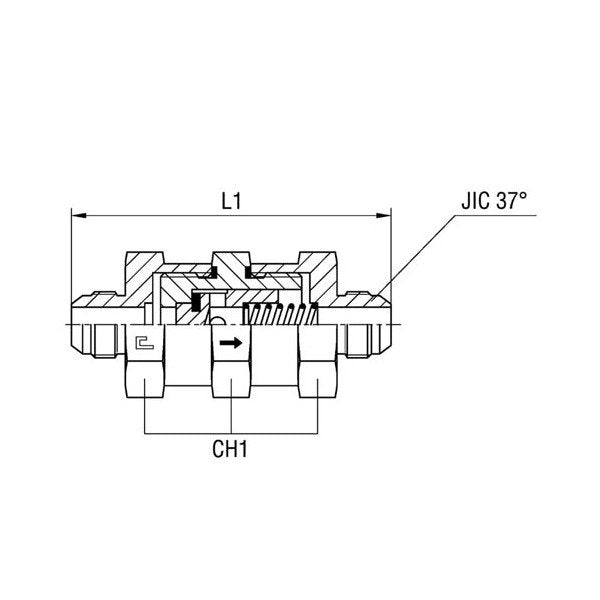

The Hydraulic Equal Non Return Valve - Standard Body is a vital component in hydraulic systems, ensuring fluid flow in a single direction. With pressure options for extra light, heavy, and light duty applications, this valve has a Nominal Operating Pressure of 350 bar. Made of sturdy Carbon Steel, it features a M Tube Diameter of 12mm, W Tube Diameter of 1/2in, and 8mm diameter pass. Ideal for hydraulic check valve systems in various industries.

Product Specifications

Specifications Ch1

32 mm

Specifications Diameter Pass

8 mm

Specifications Jic 37 Thread

3/4-16

Specifications L1

87.4 mm

Specifications Material

Carbon Steel

Specifications M Tube Diameter

12 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

1/2 in

Hydraulic Equal Non Return Valve - Standard Body, Carbon Steel
