Hydraulic Equal Non Return Valve - Standard Body - Heavy Duty - 10mm Tube Diameter
Hydraulic Equal Non Return Valve - Standard Body - Heavy Duty - 10mm Tube Diameter
SKU:FIT-9aad3e
Heavy-duty Hydraulic Equal Non Return Valve for reliable flow control in hydraulic systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Hydraulic Equal Non Return Valve - Standard Body - Heavy Duty - 10mm Tube Diameter
$39.99
Quantity: 1
Claim Your Seller Account
Hydraulic Equal Non Return Valve - Standard Body - Heavy Duty - 10mm Tube Diameter
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

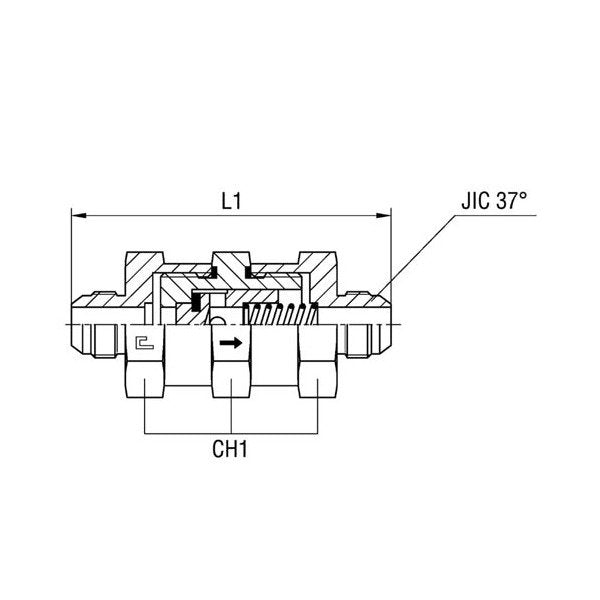

The Hydraulic Equal Non Return Valve - Standard Body is designed for heavy-duty applications, with a nominal operating pressure of 350 bar. Crafted from carbon steel, it features a tube diameter of 10mm, JIC 37° thread of 9/16-18, and passing diameter of 4mm. Ensure reliable flow control and prevent backflow in your hydraulic systems with this durable valve.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
76.2 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/8 in
