Hydraulic Female Tee Needle Valve - NPT Thread, Stainless Steel

Name: Hydraulic Female Tee Needle Valve - NPT Thread, Stainless Steel
Brand: World Wide Metric, Inc.
SKU: FIT-add13a
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-add13a

Durable stainless steel tee needle valve for hydraulic systems, with pressure options ranging from Extra Light Duty to Heavy Duty. 1/8 P-thread size, 350 bar operating pressure.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

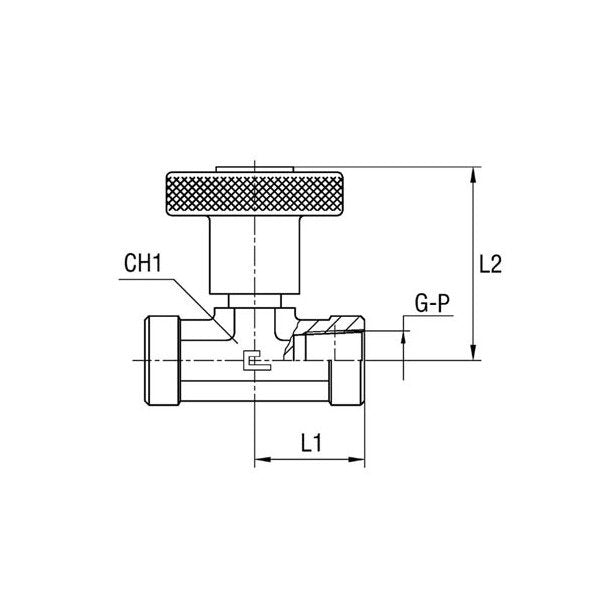

The Hydraulic Female Tee Needle Valve with NPT threads is a versatile and reliable fitting designed for hydraulic systems. With pressure options ranging from Extra Light Duty to Heavy Duty, this valve can handle up to 350 bar nominal operating pressure. Crafted from durable stainless steel, it features precise L1 and L2 lengths, CH1 diameter, and a 1/8 P-thread size. This valve ensures secure and leak-free connections, making it ideal for demanding industrial applications.

Product Specifications

Specifications Ch1

19.0 mm

Specifications L1

27.0 mm

Specifications L2

50.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications P Thread Size

1/8
