Hydraulic Female Tee Needle Valve with BSP Thread

Name: Hydraulic Female Tee Needle Valve with BSP Thread
Brand: World Wide Metric, Inc.
SKU: FIT-6e2a24
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-6e2a24

Hydraulic Female Tee Needle Valve for precise hydraulic flow control in industrial applications.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

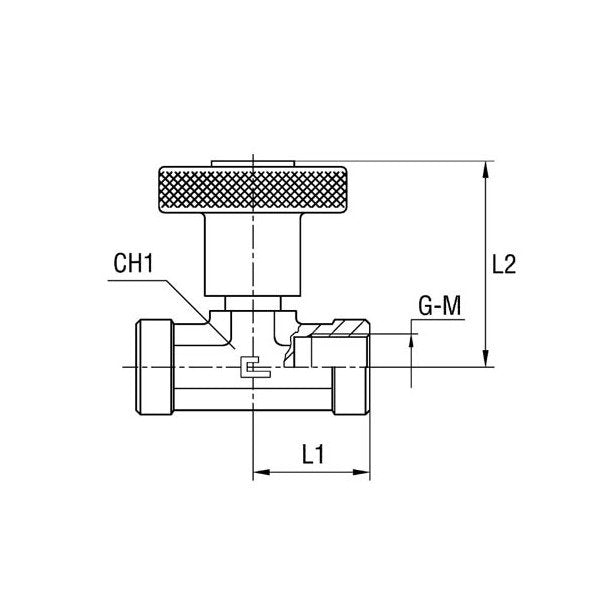

The Hydraulic Female Tee Needle Valve with BSP Thread is a versatile solution for controlling and regulating fluid flow in hydraulic systems. With a pressure range accommodating extra light duty to heavy-duty applications, an operating pressure of 350 bar, and precision engineering from carbon steel, this valve ensures reliable performance and durability. Its BSP parallel threads, G-Thread Size of 1/8, and compact design make it suitable for various hydraulic setups, providing precise flow control with dimensions of L1: 27.0 mm, L2: 50.0 mm, and CH1: 19.0 mm. Ideal for hydraulic check valve applications, this valve offers uncompromising quality and performance for industrial and institutional usage.

Product Specifications

Specifications Ch1

19.0 mm

Specifications G Thread Size

1/8

Specifications L1

27.0 mm

Specifications L2

50.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Hydraulic Female Tee Needle Valve with BSP Thread
