Hydraulic Foot Operated Pumps - FCP-LR & FCP-PL Series (Reservoir-free)
Hydraulic Foot Operated Pumps - FCP-LR & FCP-PL Series (Reservoir-free)
SKU:HYD-8474d6
High-performance Hydraulic Foot Operated Pumps for equipment with built-in reservoirs. Ensures precise control and safety with Adjustable Overload Relief Valve and Manual Pressure Release Valve. Compliant with industry standards.
Regular price
$924.00
Regular price
Sale price
$924.00
Unit price
per
Initiate Order
Hydraulic Foot Operated Pumps - FCP-LR & FCP-PL Series (Reservoir-free)
$924.00
Quantity: 1
Claim Your Seller Account
Hydraulic Foot Operated Pumps - FCP-LR & FCP-PL Series (Reservoir-free)
$924.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

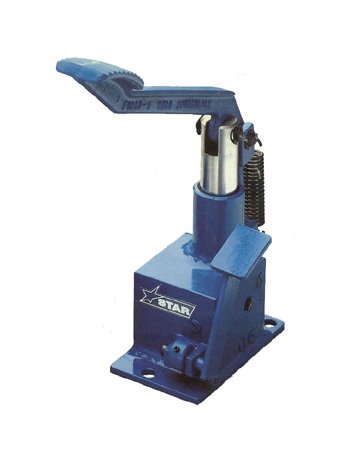

The Hydraulic Foot Operated Pumps from the FCP-LR & FCP-PL Series offer a reliable solution for equipment with built-in reservoirs. These 2-speed pumps deliver rapid movement at low pressure and seamlessly switch to high pressure for maximum force delivery. With features like Adjustable Overload Relief Valve and Manual Pressure Release Valve, they ensure precise control and safety. Built for durability with steel pump bodies and hard chrome plated pistons, these pumps meet a maximum pressure rating of 10,000 psi. Ideal for applications requiring up to 20,000 PSI, these pumps are efficient, easy to operate, and compliant with industry standards.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Foot Lever Load Per 1000 Psi
9.0 lb
Specifications Inlet Port Size Nptf
3/8
Specifications List Price
924 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
10000 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
23 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
9/16-18 Straight Thread (see drawing)
Specifications Piston
Low Pressure, Hard Chrome Plated Steel - High Pressure, Brass
Specifications Piston Diameter
1 1/2-5/16 in
Specifications Series
FCP-LR
Specifications Volume Per Stroke Large Piston To 300 Psi Approx
2.65 in³
Specifications Volume Per Stroke Small Piston Above 300 Psi Appr
0.11 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
