Hydraulic Hand Pump - P-LR Series
Hydraulic Hand Pump - P-LR Series
SKU:HYD-be012e
Reliable Hydraulic Hand Pump for high-pressure applications without reservoirs, featuring adjustable overload and manual pressure release valves.
Regular price
$568.00
Regular price
Sale price
$568.00
Unit price
per
Initiate Order
Hydraulic Hand Pump - P-LR Series
$568.00
Quantity: 1
Claim Your Seller Account
Hydraulic Hand Pump - P-LR Series
$568.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

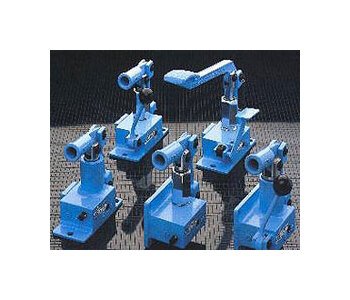

The Hydraulic Hand Pump - P-LR Series is a robust and versatile manual pump designed for use in hydraulic systems without reservoirs. Featuring adjustable overload and manual pressure release valves, this single-piston pump can deliver pressures up to 10,000 PSI. With options for base or flange mounting, hand or foot operation, and steel or stainless steel construction, it offers flexibility to suit various applications. The piston is hard chrome plated for durability, making it ideal for medical, food handling, and corrosive environments. With a 24-inch operating lever and a compact design, this pump is a reliable choice for developing or increasing hydraulic pressure.
Product Specifications
Specifications Adjustable Overload Relief Valve
Yes
Specifications Body Material
Steel
Specifications Inlet Port Size Nptf
3/8
Specifications Lever Load Per 100 Psi
4.9 lb
Specifications List Price
568 USD
Specifications Manual Pressure Release Valve
Yes
Specifications Maximum Pressure Rating
2500 psi
Specifications Mounting
Base Mounted
Specifications Net Weight
15 lb
Specifications Oil Reservoir
false
Specifications Operating Lever Size
24 in
Specifications Outlet Port Size Nptf
3/8
Specifications Piston
Hard Chrome Plated
Specifications Piston Diameter
1 in
Specifications Release
Cam Release
Specifications Series
P-LR
Specifications Volume Per Stroke
1.18 in³
Technical Information 0
Limited WarrantyAll Star pumps are covered by a limited warranty on materials and workmanship for one year from the date of manufacture. Star will repair or replace at its option any pump in which Star finds manufacturing defects. In order to get warranty service a pump must be returned to the Star plant freight prepaid with a written explanation of the problem.Technical DataLight hydraulic oil is recommended for use with Star pumps. Oils with SUS viscosity of 75 to 150 at 100 degrees Fahrenheit will give satisfactory performance (ISO grade 15, 22, or 32). In an emergency situation when the above oils are not available, use 5 W or 10 W motor oil or automatic transmission fluid.All exposed surfaces of standard Star pumps are painted with one coat of industrial quality paint. Pumps painted with special colors with two coat finishes, or with prime coat only, and pumps with special plated or polished parts, are also available.
