High-performance in-tank mobile filter for hydraulic applications with 360 psi working pressure, wide fluid compatibility, and easy installation.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Hydraulic In-Tank Mobile Filter RFM Series 145 PSI
$189.99
Quantity: 1
Claim Your Seller Account
Hydraulic In-Tank Mobile Filter RFM Series 145 PSI
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

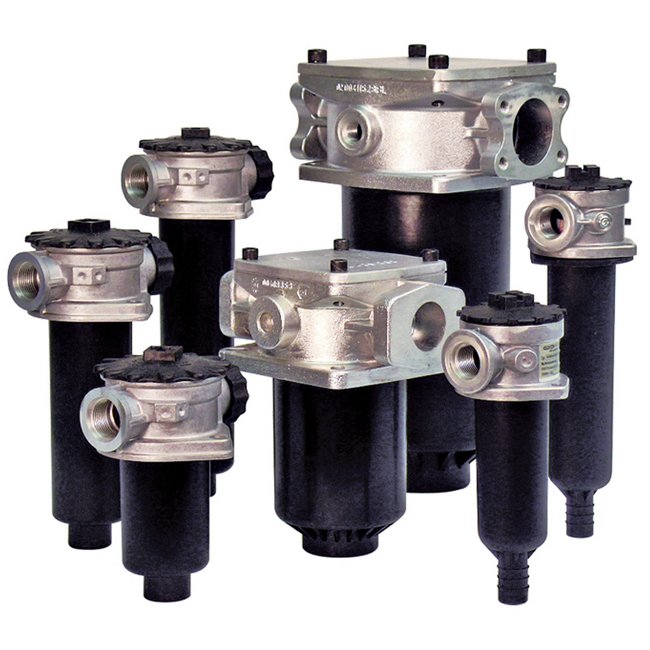

The In-Tank Mobile Return Line Filter RFM Series (145 PSI) is a high-performance filter for mobile hydraulic applications. Constructed with durable aluminum and polyamide plastic, this filter has a housing working pressure rating of 360 psi, ensuring reliable operation in demanding environments. Its non-welded design reduces stress concentrations, preventing fatigue failure. With a wide fluid temperature range and compatibility with various fluids, this filter provides effective contamination control. Easy to install with multiple port options, this filter is ideal for construction, agricultural, automotive, and mobile equipment.
Product Specifications
Application 0
ConstructionAgriculturalAutomotiveMobile
Features 0
RF 30 filters are constructed of polyamide plastic.RF 60 - 330 filters are constructed of aluminum material. Aluminum alloy is water tolerant - anodization is not required for high water based fluids (HWBF).RF 660 - 1300 filters are constructed of ductile iron.Non-welded housing design reduces stress concentrations and prevents fatigue failure.Inlet/outlet port options include NPT, SAE straight thread O-ring boss, and SAE 4-bolt flange to allow easy installation without costly adapters.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water base fluids.Bolt-on lid requires minimal clearance for removal.Reusable contamination basket prevents loss of retained contaminants into the reservoir during element replacement.Single piece casting provides rigidity for inline or in-tank mounting.
Fluid Compatibility 0
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
Note 0

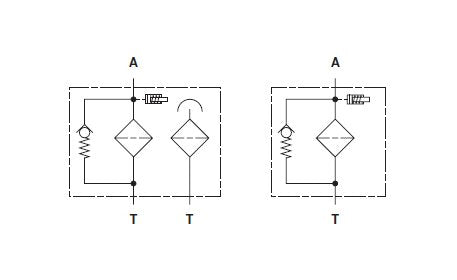

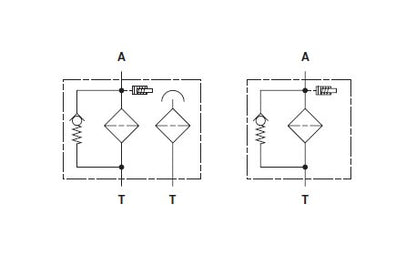

This filter is configured with an ..... R .... type (return/low pressure) element, so if the filter requires a bypass, the bypass is located in the closed end cap of the cartridge element.
Specifications Bun
EA
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Rating
10 µm
Specifications Filter Type
In-Tank

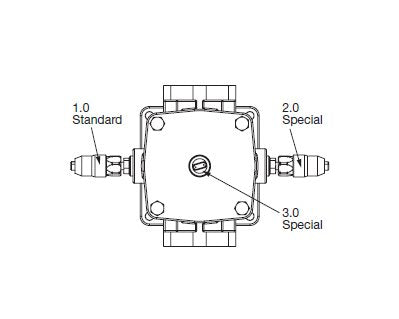

Specifications Indication Type
A = Port Plugged
Specifications Inlet Port Configuration
SAE Flange Code 61 Inlet Connections
Specifications Model Code Description
RFM330BKXXA1.0/16
Specifications Operating Pressure Max
145 bar | 10 psi
Specifications Product
FILTERS-LOW PRESSURE (< 360PSI)
Specifications Product Group Family
FILTERS-LOW PRESSURE (?360 PSI)
Specifications Size
330
Specifications Type
In-Tank Return Line Filters for Mobile Applications
Specifications Type Number
Standard Connection
Specifications Weight
9.0 lb
Technical Specifications Construction Material For Head
Aluminum
Technical Specifications Direction Of Inlet Flow
Side
Technical Specifications Direction Of Outlet Flow
Bottom
Technical Specifications Fluid Temperature Range
-10 to 100 ºC | 14 to 212 ºF
Technical Specifications Housing Fatigue Pressure Rating At 7000
33 bar | 478 psi
Technical Specifications Housing Working Pressure Rating
360 psi | 25 bar
Technical Specifications Materials Of Construction Housing
Aluminum/Polyamide Plastic
Technical Specifications Materials Of Construction Lid
Polyamide/Plastic
Technical Specifications Maximum Temperature
100 ºC | 212 ºF
Technical Specifications Minimum Temperature
-30 ºC | -22 ºF
Technical Specifications Mounting Method
4 Mounting Holes - Filter Housing
Technical Specifications Note For Fluid Temperature Range
Consult HYDAC for applications below 14 ºF (-10 ºC)
Technical Specifications Note For Housing Pressure Rating
All RF Filters MAWP reduce to 7 bar (101.5 psi) when using the following "VMF" and "VR" indicators: B, BM, E, ES, GC, LE, LZ.
Technical Specifications Optional Bypass Valve Cracking Pressure
87 psid | 6 bar
Technical Specifications Optional Indicator Trip Pressure
72 psi | 5 bar
Technical Specifications Standard Indicator Trip Pressure
29 psi | 2 bar
Technical Specifications Tolerance For Indicator Trip Pressure
-10 %
