Hydraulic In-Tank Mobile Filter RFM Series 330 - 145 PSI
Hydraulic In-Tank Mobile Filter RFM Series 330 - 145 PSI
SKU:HYD-66ea14
Efficient In-Tank Mobile Return Line Filter for mobile applications at 145 PSI - Ideal for hydraulic and lubrication systems.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Hydraulic In-Tank Mobile Filter RFM Series 330 - 145 PSI
$289.99
Quantity: 1
Claim Your Seller Account
Hydraulic In-Tank Mobile Filter RFM Series 330 - 145 PSI
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

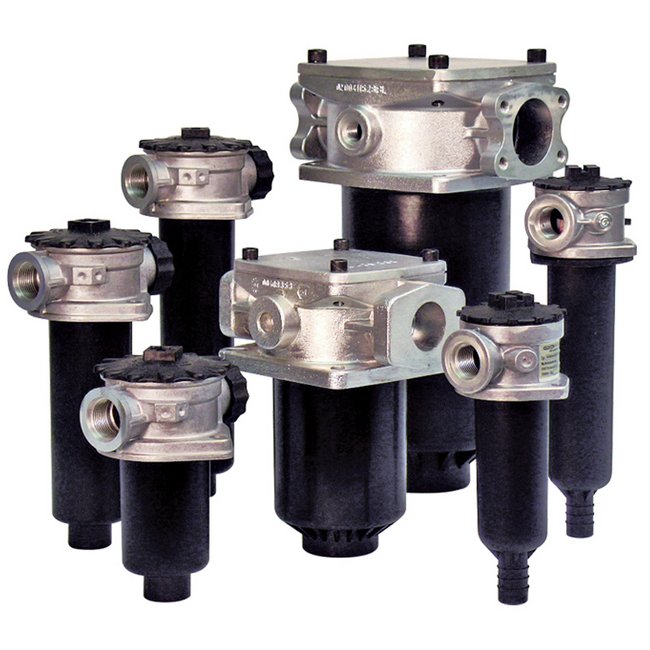

The In-Tank Mobile Return Line Filter from the RFM Series is designed for mobile applications requiring efficient filtration at a maximum operating pressure of 145 psi. Featuring a durable construction with aluminum and polyamide plastic materials, this filter ensures reliable performance in hydraulic and lubrication systems. With a filter rating of 10 µm and compatibility with various fluids, including hydrocarbon-based, synthetic, and water glycol, this filter provides versatile filtration solutions for construction, agricultural, automotive, and mobile equipment. Its non-welded housing design, multiple inlet/outlet port options, and O-ring seals guarantee easy installation and secure sealing. The reusable contamination basket and rigid single-piece casting enhance longevity and maintenance ease.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
ConstructionAgriculturalAutomotiveMobile
Features 0
RF 30 filters are constructed of polyamide plastic.RF 60 - 330 filters are constructed of aluminum material. Aluminum alloy is water tolerant - anodization is not required for high water based fluids (HWBF).RF 660 - 1300 filters are constructed of ductile iron.Non-welded housing design reduces stress concentrations and prevents fatigue failure.Inlet/outlet port options include NPT, SAE straight thread O-ring boss, and SAE 4-bolt flange to allow easy installation without costly adapters.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water base fluids.Bolt-on lid requires minimal clearance for removal.Reusable contamination basket prevents loss of retained contaminants into the reservoir during element replacement.Single piece casting provides rigidity for inline or in-tank mounting.
Fluid Compatibility 0
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
Note 0
This filter is configured with an ..... R .... type (return/low pressure) element, so if the filter requires a bypass, the bypass is located in the closed end cap of the cartridge element.
Specifications Bun
EA
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Element Material
Wire Mesh
Specifications Filter Rating
10 µm
Specifications Filter Type
In-Tank
Specifications Indication Type
D = Electrical Switch/Visual
Specifications Inlet Port Configuration
SAE Straight Thread Inlet/Outlet Connections
Specifications Model Code Description
RFMW/HC330BF25D1.0/12B1-L110
Specifications Operating Pressure Max
145 bar | 10 psi
Specifications Product
FILTERS-LOW PRESSURE (< 360PSI)
Specifications Product Group Family
FILTERS-LOW PRESSURE (?360 PSI)
Specifications Size
330
Specifications Type
In-Tank Return Line Filters for Mobile Applications
Specifications Type Number
Standard Connection
Specifications Weight
9.0 lb
Supplementary Details 0
Lamp For D-Type Clogging Indicator
Technical Specifications Bypass Valve Pressure
14.5 psid | 1 bar
Technical Specifications Construction Material For Head
Aluminum
Technical Specifications Direction Of Inlet Flow
Side
Technical Specifications Direction Of Outlet Flow
Bottom
Technical Specifications Element Collapse Pressure Rating
290 psid | 20 bar
Technical Specifications Fluid Temperature Range
-10 to 100 ºC | 14 to 212 ºF
Technical Specifications Housing Fatigue Pressure Rating At 7000
33 bar | 478 psi
Technical Specifications Housing Working Pressure Rating
360 psi | 25 bar
Technical Specifications Materials Of Construction Housing
Aluminum/Polyamide Plastic
Technical Specifications Materials Of Construction Lid
Polyamide/Plastic
Technical Specifications Maximum Temperature
100 ºC | 212 ºF
Technical Specifications Minimum Temperature
-30 ºC | -22 ºF
Technical Specifications Mounting Method
4 Mounting Holes - Filter Housing
Technical Specifications Note For Fluid Temperature Range
Consult HYDAC for applications below 14 ºF (-10 ºC)
Technical Specifications Note For Housing Pressure Rating
All RF Filters MAWP reduce to 7 bar (101.5 psi) when using the following "VMF" and "VR" indicators: B, BM, E, ES, GC, LE, LZ.
Technical Specifications Optional Bypass Valve Cracking Pressure
87 psid | 6 bar
Technical Specifications Optional Indicator Trip Pressure
72 psi | 5 bar
Technical Specifications Standard Bypass Valve Cracking Pressure
43 psid | 3 bar
Technical Specifications Standard Indicator Trip Pressure
29 psi | 2 bar
Technical Specifications Tolerance For Indicator Trip Pressure
-10 %
