Hydraulic Industrial Filter - High Pressure (6090 PSI) - DF Series
Hydraulic Industrial Filter - High Pressure (6090 PSI) - DF Series
SKU:HYD-b8a2af
DF Series Hydraulic Industrial Filter - High Pressure (6090 PSI) with durable design for optimal performance in various applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Hydraulic Industrial Filter - High Pressure (6090 PSI) - DF Series
$299.99
Quantity: 1
Claim Your Seller Account
Hydraulic Industrial Filter - High Pressure (6090 PSI) - DF Series
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Industrial Filter - High Pressure (6090 PSI) from the DF Series is a top-of-the-line solution designed to handle pressures up to 6090 psi and flow rates of up to 200 gpm. Built for durability and efficiency, this filter features a non-welded housing design to prevent fatigue failure, various port connection options for easy installation, and O-ring seals for reliable sealing. With a bypass valve for cold starts and flow surges, this filter ensures optimal performance across a range of applications, including agricultural, automotive, industrial, and more. Trust the DF Series for quality filtration in demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
AgriculturalAutomotiveConstructionGearboxesIndustrialPulp & PaperOffshoreRailwaysCommercial MunicipalShipbuildingPower GenerationSteel / Heavy Industry

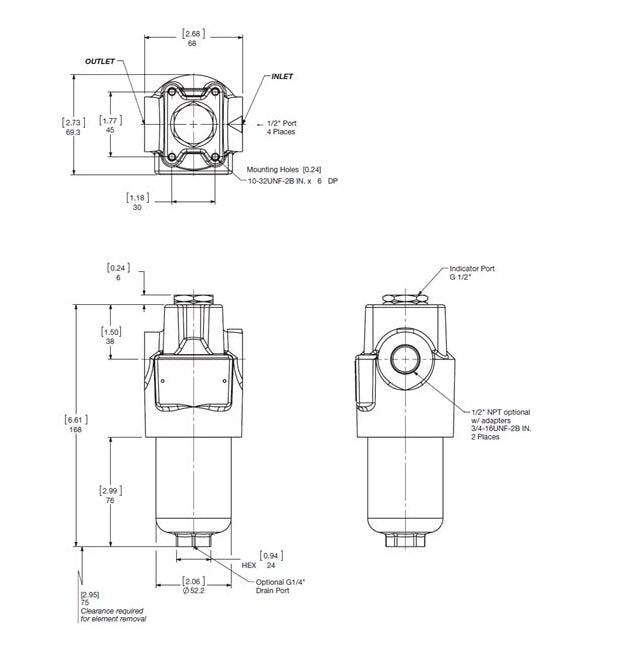

Dimensions Diameter D1
2.73 in | 69.3 mm
Dimensions Dimension B1
2.68 in | 68 mm
Dimensions Dimension H1
6.61 in | 168 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of NPT, BSPP, SAE straight thread O-ring boss, and SAE 4-bolt flange porting (sizes 60 - 1320) to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, and ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl or lid (on 2-pc. bowls) mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bun
EA
Specifications Cap Material
Steel
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Filter Type
Inline Filter
Specifications Indication Type
A = No indicator, plugged port
Specifications Model Code Description
DFBN/HC30TB3A1.0/12V
Specifications Modification Number
0
Specifications Port Configuration
SAE Straight Thread O-ring Boss Ports
Specifications Port Connection
1/2 in.
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seals
Fluorocarbon Elastomer (FKM)
Specifications Size
30
Specifications Type
High Pressure Filter
Specifications Type Number
1
Specifications Weight
5.1 lb
Technical Specifications Burst Housing Pressure Rating
1100 bar | 15950 psi
Technical Specifications Bypass Valve
Non-Bypass
Technical Specifications Construction Material For Bowl
Steel
Technical Specifications Construction Material For Head
Ductile iron
Technical Specifications Element Collapse Pressure Rating
210 bar | 3045 psi

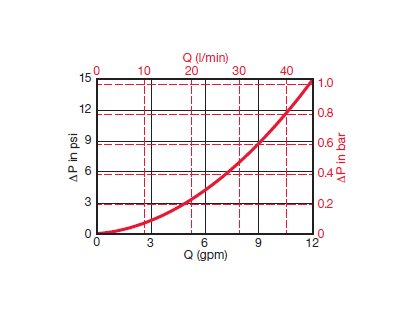

Technical Specifications Element K Factors
5.005
Technical Specifications Fatigue Housing Pressure Rating At 1 Mi
420 bar | 6090 psi
Technical Specifications Filter Rating
3 µm
Technical Specifications Flow Capacity
8 gpm | 30 L/min
Technical Specifications Flow Direction
Inside - Outside
Technical Specifications Fluid Compatibility
Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.
Technical Specifications Maximum Allowable Housing Working Press
420 bar | 6090 psi
Technical Specifications Maximum Fluid Temperature
100 ºC | 212 ºF
Technical Specifications Minimum Fluid Temperature
-10 ºC | 14 ºF
Technical Specifications Mounting Method
4 Mounting Holes
Technical Specifications Note For Fluid Temperature Range
Consult HYDAC for applications operating below 14ºF (-10ºC)
Technical Specifications Tolerance For Cracking Pressure Optiona
10 %
Technical Specifications Tolerance For Cracking Pressure Standar
10 %
