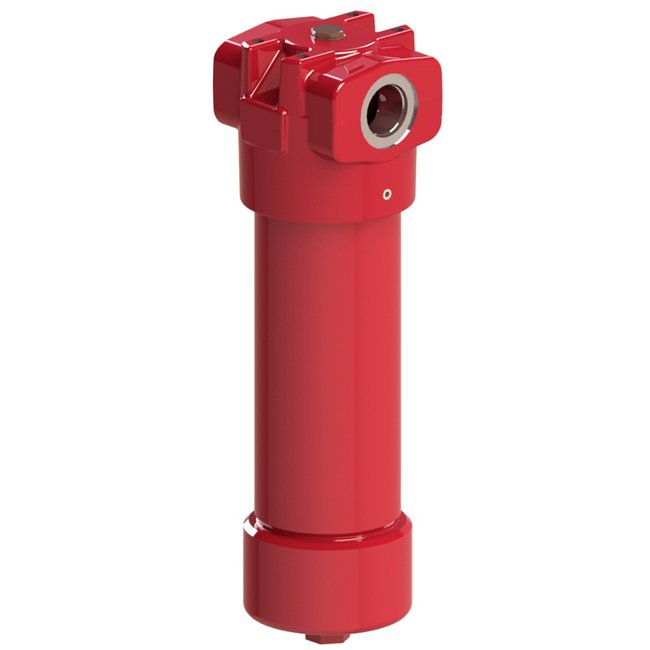

Hydraulic Inline Industrial Filter HF3P Series 6090 PSI
Hydraulic Inline Industrial Filter HF3P Series 6090 PSI
SKU:HYD-0440c3
Enhance performance and reliability with the Hydraulic Inline Industrial Filter HF3P Series 6090 PSI. Ideal for automotive and industrial needs.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Hydraulic Inline Industrial Filter HF3P Series 6090 PSI
$589.99
Quantity: 1
Claim Your Seller Account
Hydraulic Inline Industrial Filter HF3P Series 6090 PSI
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydraulic Inline Industrial Filter HF3P Series 6090 PSI is a high-pressure filter designed for maximum efficiency and reliability in automotive and industrial applications. With a flow rate of 55 gpm and operating pressure up to 6090 psi, this filter ensures superior performance. Featuring a non-welded housing design and a poppet-type bypass valve for optimal sealing, it offers easy element replacement and prevents contamination. Compatible with various fluids, seal materials, and mounting options, it provides flexibility without compromising on quality.
Product Specifications
Dimensions End Size
1-1/2 in
Dimensions Height
13.74 in | 349 mm
Dimensions Width
6.30 in | 160 mm
Features 0
Non-welded housing design reduces stress concentrations and prevents fatigue failure.Choice of BSPP, SAE straight thread O-ring boss, and SAE Flange porting (sizes 4"-16") to allow easy installation with maximum flexibility.O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile Rubber, fluorocarbon elastomer, and ethylene propylene Rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water based fluids.Screw-in bowl mounted below the filter head requires minimal clearance to remove the element for replacement and contaminated fluid cannot be washed downstream when element is serviced.HYDAC Differential Pressure Indicators have no external dynamic seal. This results in a high system reliability due to magnetic actuation, thus eliminating a potential leak point.A poppet-type bypass valve located in the filter head provides positive sealing during normal operation and fast opening during cold starts and flow surges. (Optional non-bypass available)For special finishes and coatings - consult HYDAC for minimum quantities, availability and pricing.Fatigue pressure ratings equal maximum allowable working pressure rating.
Specifications Bypass Valve
B3
Specifications Bypass Valve Cracking Pressure
3 bar | 43 psid
Specifications Division
HYDRAULIC AND LUBE FILTERS
Specifications Element Collapse Pressure Rating
20 bar | 290 psi
Specifications Element Material
Betamicron®
Specifications End Type
SAE Straight Thread O-Ring Boss SAE 24 in. or SAE 16 in.
Specifications Filter Rating
12 µm
Specifications Flow
55 gpm | 208 L/min
Specifications Head Material
Ductile iron
Specifications Model Code Description
HF3P-BN-08TF12B1.0/12B3
Specifications Mounting Type
Inline 4 Mounting Holes
Specifications Operating Pressure Max
420 bar | 6090 psi
Specifications Product
FILTERS-HIGH PRESSURE (>3000PSI)
Specifications Product Group Family
FILTERS-HIGH PRESSURE (ò3000 PSI)
Specifications Seal Material
Nitrile Rubber (NBR)
Specifications Type
High Pressure Filter
Specifications Weight
25.44 kg | 56.1 lb
