Hydraulic Male Stud Non Return Valve 22x1.5 Metric Parallel - Stainless Steel

Name: Hydraulic Male Stud Non Return Valve 22x1.5 Metric Parallel - Stainless Steel
Brand: World Wide Metric, Inc.
SKU: FIT-9f8364
Price: 59.99 USD
Availability: OutOfStock

SKU:FIT-9f8364

Reliable Stainless Steel Non Return Valve with 350 Bar Pressure & Metric Parallel Thread Size 22x1.5

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Hydraulic Male Stud Non Return Valve with Elastomer Seal offers robust Extra Light Duty, Heavy Duty, and Light Duty pressure options suitable for various hydraulic systems. With a Nominal Operating Pressure of 350 bar, stainless steel construction, and precise Metric Parallel Thread (22x1.5), it ensures reliable performance in demanding environments. The valve's compact design, featuring Tube Diameters of 14mm, 15mm, or 16mm, and a 5/8" W Tube, meets stringent industry standards for durability and efficiency.

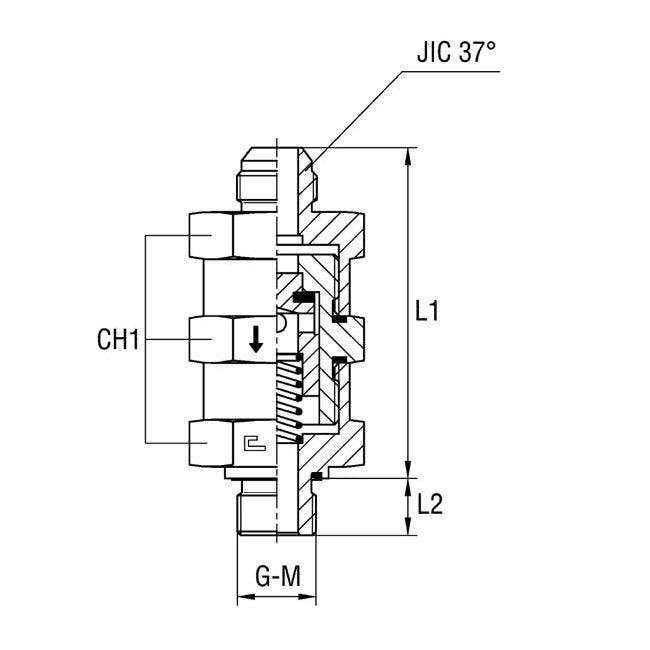

Product Specifications

Specifications Ch1

41 mm

Specifications Diameter Pass

11 mm

Specifications Jic 37 Thread

7/8-14

Specifications L1

79.3 mm

Specifications L2

14.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

22x1.5

Specifications M Tube Diameter

14 mm | 15 mm | 16 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

5/8 in
